Teltonika RUTM30 compact 5G Router
Your price incl. VAT (%)
0.00
Ordered for stock
Planned Delivery Date by Courier to you 25-06-2025
Product description
The RUTM30 is a compact, dual-SIM, multi-network router with eSIM™ that delivers 5G mobile connectivity for data-intensive applications. Equipped with two Gigabit Ethernet ports and dual-band Wi-Fi, it offers data connection redundancy with auto-failover. Its backward compatibility with LTE Cat 19 and multiple interfaces ensure long-term network expandability and simple upgrades. The RUTM30 is ideal for various IoT and M2M solutions that demand high-speed connectivity, easy setup, and remote access.
Key features
- CONNECTIVITY: 5G, 4G Cat19, 3G
- DUAL SIM: With auto failover, backup WAN, and other switching scenarios
- eSIM™: Seamless connectivity with eSIM™ SGP.22
- SA & NSA: Supports both architectures to leverage the 5G infrastructure

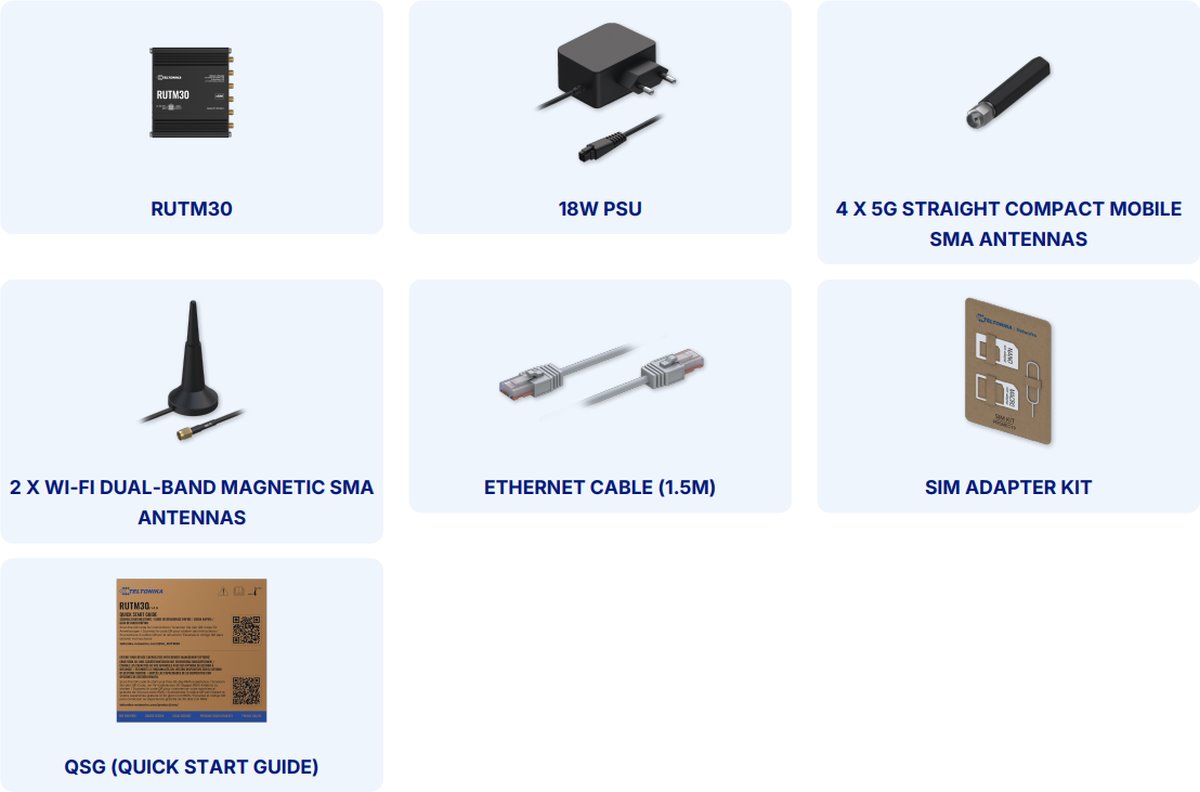

Package contents
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 50V DC
WAN speed
(1) 10/100/1000Mbps
Design
Desktop, DIN rail, On the wall
Supported VPN
GRE, IPSec, L2TP, OpenVPN, PPTP, Tinc, WireGuard, ZeroTier
Operating mode
Access Point, AP Router, Client, Cellular router
Management
SSH, Teltonika RMS, Web management
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11ac, 802.11b/g, 802.11n
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 2.4GHz [Mb/s]
300
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
6
RF connectors
(2) RSMA female, (4) SMA female
Integrated 4G/LTE radio part
Yes
Power type
DC connector, PoE
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (32) 1500 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (5) 850 MHz, (7) 2600 MHz, (71) 600 MHz, (8) 900 MHz
5G bands support
(n1) 2100 MHz, (n20) 800 MHz, (n28) 700 MHz, (n3) 1800 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n8) 900 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
1
LAN speed
(2) 10/100/1000Mbps
Max. power consumption [W]
9
Power via connector/terminal
9 .. 50V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
319
Width [mm]
100
Height [mm]
30
Depth [mm]
94
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
CPU frequency [MHz]
880
SIM slot
Yes
SIM slots quantity
2
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
256
RAM [MB]
256
Default login and password
admin / (preset password, see label/engraving)
