Teltonika TRB501 Industrial 5G Gateway
Your price incl. VAT (%)
0.00
❌ The item is not available. There is no option to order.
No confirmed delivery date
You have a choice of 2 variants
Product description
The Teltonika TRB501 5G gateway is among the compact and energy-efficient devices with a 2,5 Gigabit Ethernet interface. The device delivers ultra-low latency 5G network speeds for critical infrastructure and high data throughput. This is ensured by 4 additional external antennas (included in the package), which enable use in a 4×4 MIMO configuration.
Main advantages
- Compact size
- A powerful 5G system
- Can be equipped with additional external antennas
With the reliable RutOS system
TRB501 is shipped with the RutOS operating system, which provides advanced security features and compatibility with a remote management system (Teltonika RMS) for optimized remote management and monitoring capabilities of large groups of devices.
Key Features
- Advanced 5G gateway
- Supports 5G networks
- Offers 4x SMA port for external antennas
- RutOS operating system
- Interface: 1× 10/100/1000/2500 Mbps LAN, 1× SIM slot (Mini SIM – 2FF)
- (2) Configurable digital I/O on 4-pin power connector

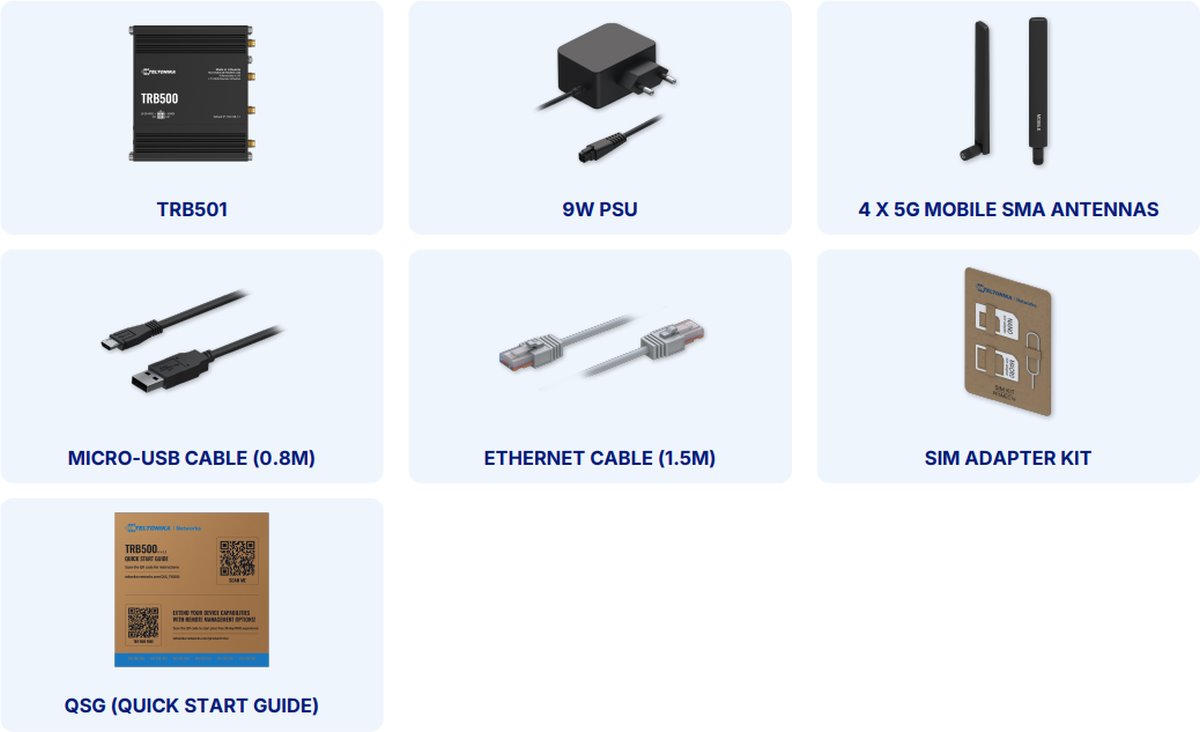

Package contents
Download
Technical parameters
LAN ports
Protection class
IP30
Design
Desktop, DIN rail
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE
Wireless frequency
3G (GSM), 4G (GSM), 5G (GSM)
RF connectors
(4) SMA female
Power type
DC connector
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz, (71) 600 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n8) 900 MHz, (n71) 600 MHz, (n75) 1500 MHz, (n76) 1500 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Max. power consumption [W]
5
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
241
Width [mm]
100
Height [mm]
30
Depth [mm]
93
SIM slot
Yes
SIM slots quantity
1
Internal storage [MB]
512
RAM [MB]
256
