MEAN WELL XDR-240E-24 Switching power supply, DIN rail
Your price incl. VAT (%)
0.00
❌ The item is not available. There is no option to order.
No confirmed delivery date
You have a choice of 4 variants
Product description

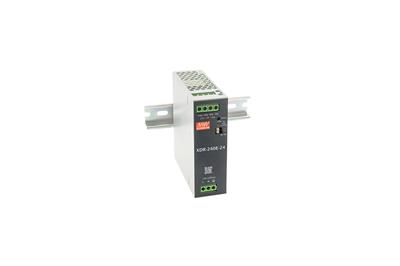

XDR-240E-24 is a 240W AC/DC industrial power supply with an output voltage of 24 V. Thanks to its compact 40 mm width, it can be easily installed on a DIN rail (TS-35/7.5 or TS-35/15). The unit offers an exceptionally wide input voltage range of 85–264 V AC, allowing for universal use. The power supply achieves a maximum efficiency of 95,2 % and features low standby power consumption (less than 1 W).
The device features a constant current mode and offers a wide operating temperature range from -40 to +70 °C. The XDR-240E series complies with the OVC III standard. With comprehensive protection features and safety certifications, the XDR-240E series represents a high-performance and reliable power supply solution.
Download
Technical parameters
LAN ports
The input voltage [V]
85 .. 264V AC
Construction
DIN rail
Input and output power
Terminal block
Power [W]
240
Output Voltage [V]
24
Output Current [A]
10
Operating temperature [°C]
-40 up to 70
Weight [g]
610
Width [mm]
40
Height [mm]
125
Depth [mm]
116
Efficiency [%]
95
