Hikvision DS-3T1506HP-EI-UPS, Solar gigabit PoE switch
Your price incl. VAT (20.0%)
189.23 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
4.69 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
4.69 EUR excl. VAT
4.83 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
6.39 EUR excl. VAT
Download
Technical parameters
LAN ports
Design
DIN rail, Desktop, On the wall
Switchning capacity [Gbps]
14
MAC address table
2000
Packet forwarding rate [Mpps]
10,4
Web management
Yes
Management
Web management
Features
L2, VLAN, QoS
Power type
Battery, DC connector
Fans
No
LAN speed
(4) 10/100/1000Mbps
LAN ports 1G
4
PoE type
PoE-Out (only)
RJ45 ports 1G
4
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at, 802.3bt, Passive 24V
Redundant power supply
Yes
PoE Out ports
4
PoE budget [W]
110
Long range PoE - up to 250m
Yes
Max. power consumption [W]
120
Serial port
RS-485
Chassis design
Metal
Power via connector/terminal
54V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75

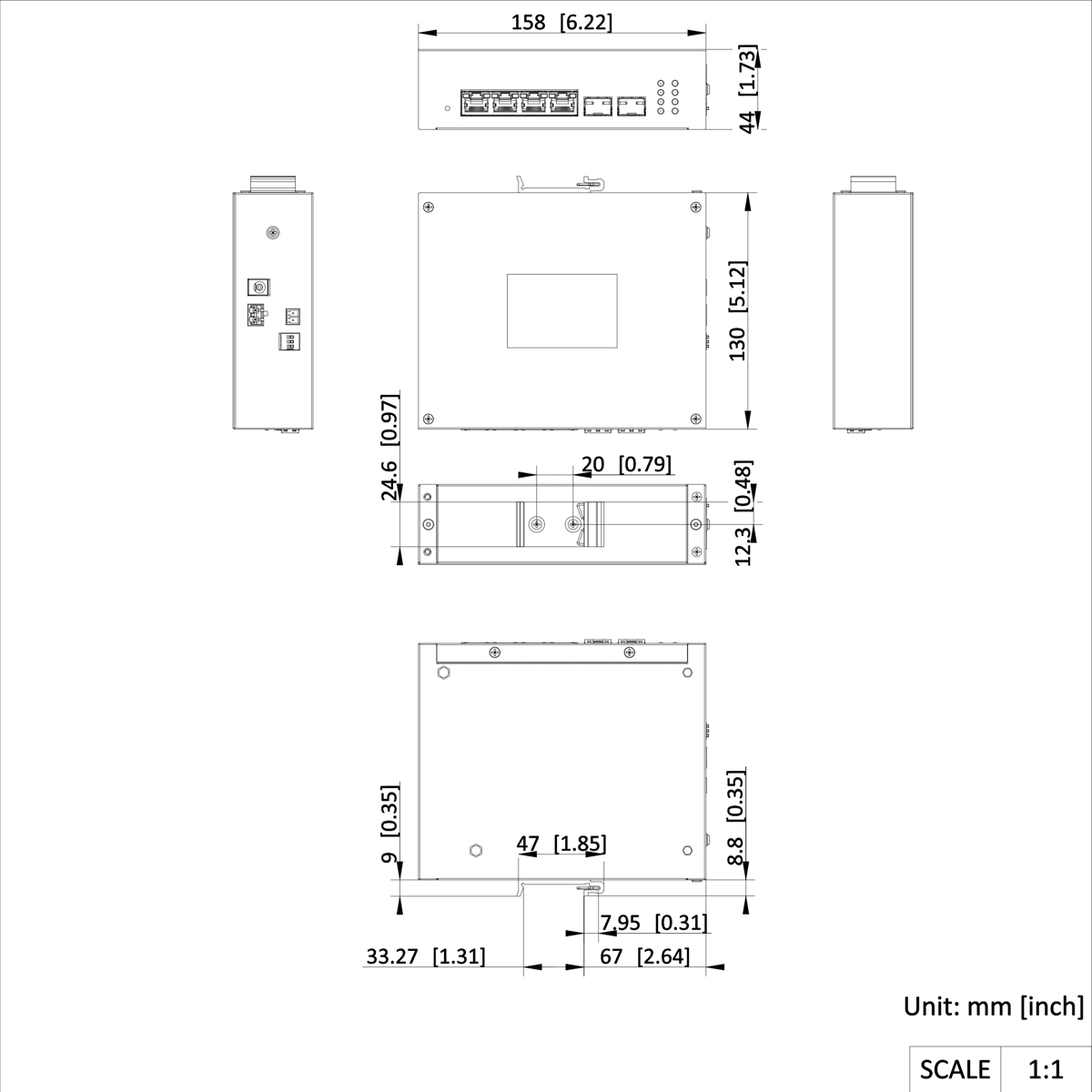

Width [mm]
158
Height [mm]
44
Depth [mm]
130
Default IP address
10.180.190.200, Dynamic from DHCP
