Hikvision DS-3T1528HP-SI-24P4F, Gigabit PoE switch
Your price incl. VAT (20.0%)
497.93 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
Manufacturer
Product number
DS-3T1528HP-SI-24P4F
Product Code
RL030.905
Warranty
36 months
4.69 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
4.69 EUR excl. VAT
4.83 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
6.39 EUR excl. VAT
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
56
MAC address table
8000
Packet forwarding rate [Mpps]
41,7
Web management
Yes
Management
Web management
Features
L2, VLAN, QoS, DHCP snooping
Power type
DC terminal
Fans
No
LAN speed
(24) 10/100/1000Mbps
LAN ports 1G
24
PoE type
PoE-Out (only)
RJ45 ports 1G
24
SFP cages
4
Optical interfaces
(4) 1000Mbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
24
PoE budget [W]
480
Long range PoE - up to 250m
Yes
Max. power consumption [W]
500
Chassis design
Metal
Power via connector/terminal
48 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75

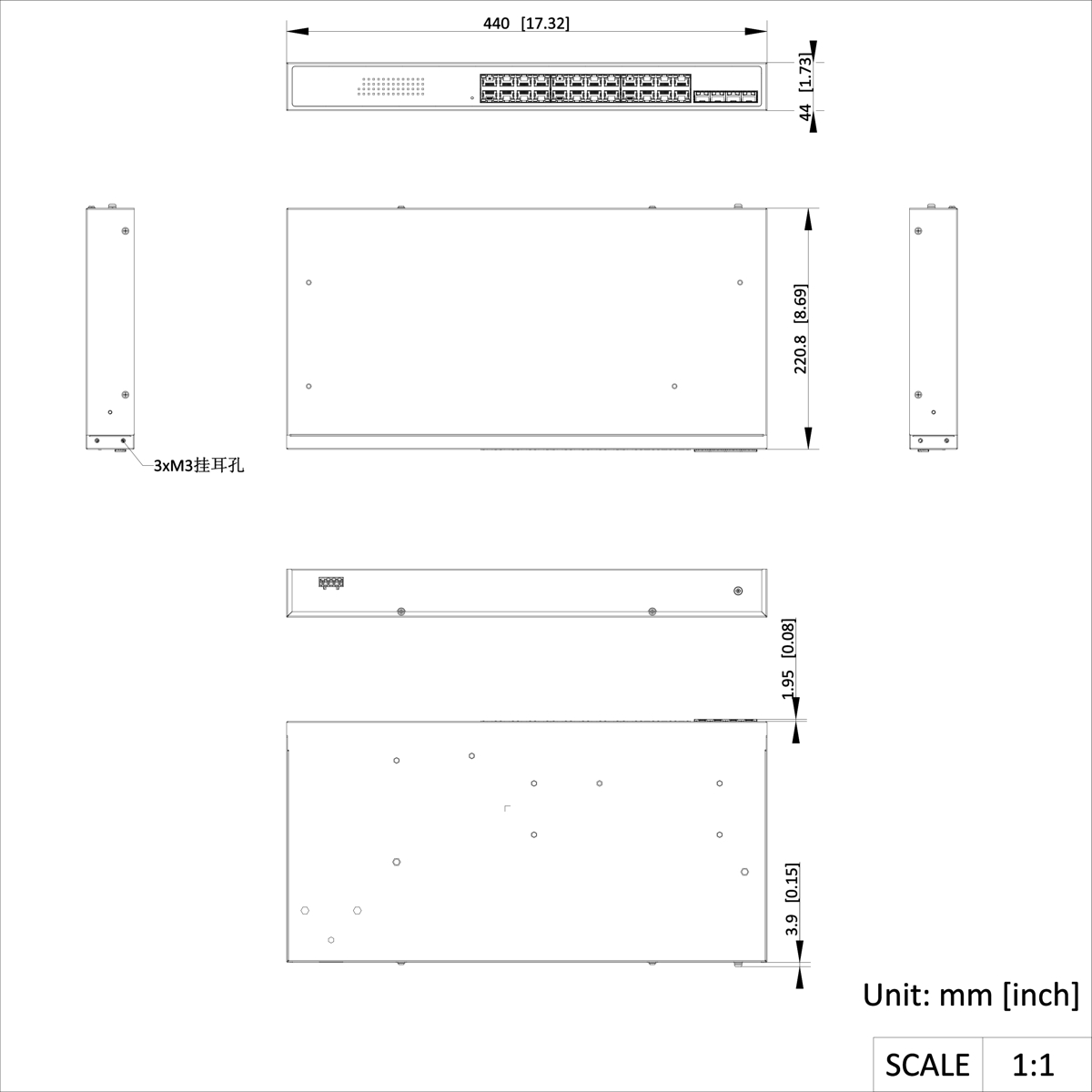

Width [mm]
440
Height [mm]
44
Depth [mm]
221
Default IP address
10.180.190.200
