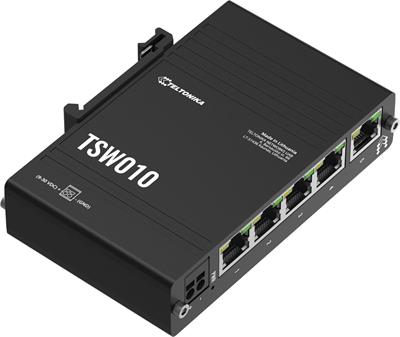

Teltonika TSW010, DIN switch
Your price incl. VAT (20.0%)
0.00 EUR
Ordered for stock
Planned Delivery Date by Courier to you 16-09-2026
You have a choice of 2 variants
Product description
The Teltonika TSW010 is an unmanaged PoE switch with a switching capacity of 1Gbps and (5) 10/100Mbps ports designed for DIN rail mounting. Power can be supplied via a 12-40V AC terminal block or passive PoE (9-30 V) on the LAN1 port. The maximum power consumption is 0.9W.
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 30V DC
Design
DIN rail
MAC address table
2000
Jumbo frame [Bytes]
2048
Power type
AC terminal, PoE
Fans
No
LAN speed
(5) 10/100Mbps
PoE type
PoE-In (only)
RJ45 ports 100M
5
Max. power consumption [W]
1
Chassis design
Metal
Power via connector/terminal
12 .. 40V AC
Operating temperature [°C]
-40 up to 75
Width [mm]
27
Height [mm]
113
Depth [mm]
81
