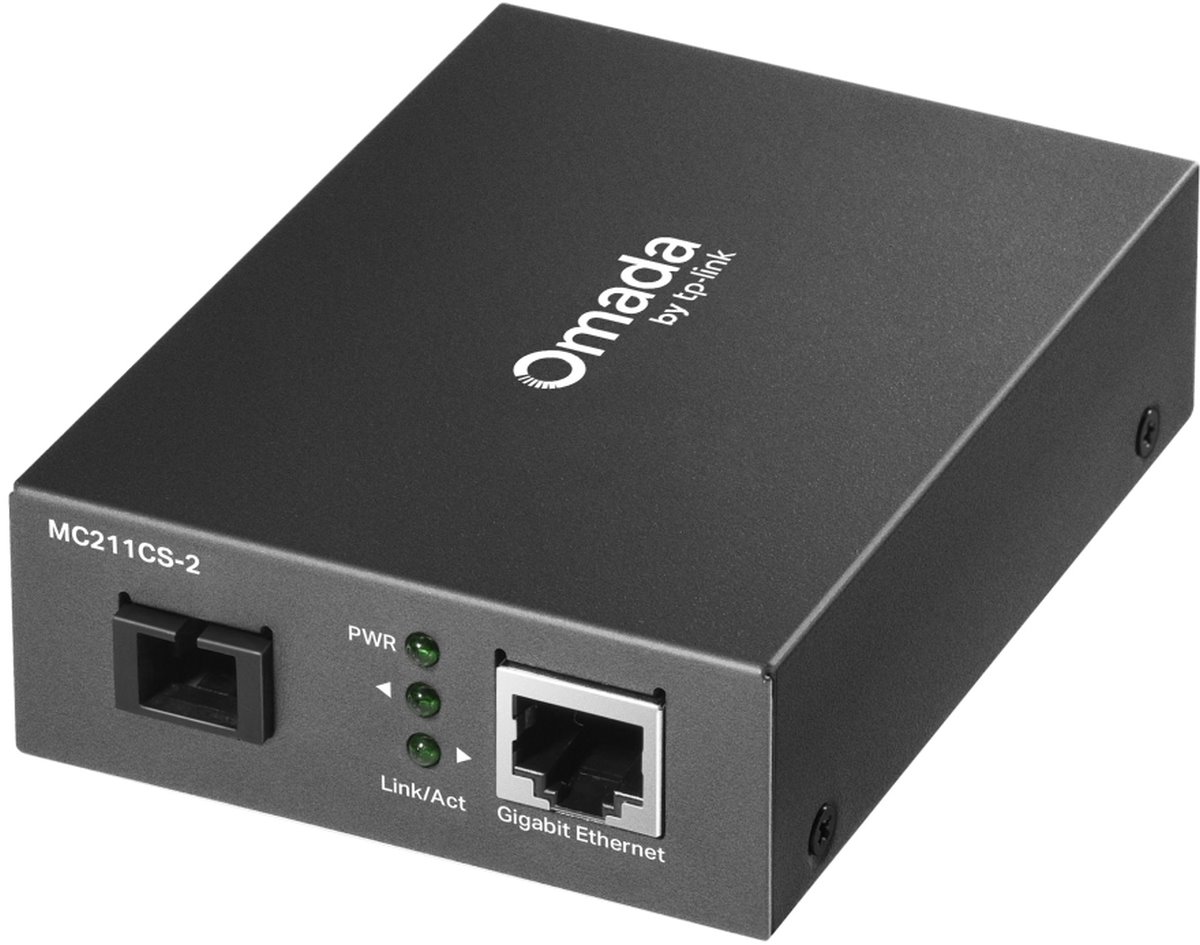

TP-Link MC211CS-2 Omada Gigabit WDM media converter
Вашата цена с ДДС (%)
0.00
✅ В наличност < 10 Бр.
Планирана Дата Доставка на Куриер до Вас 09-07-2025
Имате избор от 4 варианта
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 2mSCupc/SCupc-SSM.9/125-02
без ДДС
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 3mSCupc/SCupc-SSM.9/125-03
без ДДС
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 7mSCupc/SCupc-SSM.9/125-07
без ДДС
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 15mSCupc/SCupc-SSM.9/125-15
без ДДС
Masterlan fiber optic patch cord, LCupc-SCupc, Singlemode 9/125, simplex, 1mLCupc/SCupc-SSM.9/125-01
без ДДС
Masterlan fiber optic patch cord, LCupc-SCupc, Singlemode 9/125, simplex, 2mLCupc/SCupc-SSM.9/125-02
без ДДС
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукMC211CS-2 is an optical-metallic WDM converter from RJ45 to optical SC connector. Maximum throughput is 1000Mbps FD, which is also adapted to the Ethernet port, which can communicate with your device with 10/100/1000 Mbps speed. The converter can be used up to a distance of 20km with a single-mode (9/125um) optical fiber with one SC connector. The wavelength is 1550 / 1310 nm (Tx/Rx) and for proper functionality it is necessary to have on opposite side model MC212CS-2, which has opposite Tx and Rx than this model.
Package contents
- Device
- Power adapter
- Installation Guide
Свали
Технически параметри
LAN ports
For cable type
Single Mode
Optical Connectors
(1) SC
Transmission speed
1 Gbps
Wavelength - Tx/Rx [nm]
1550 / 1310
Distance [km]
2
Power type
DC connector
LAN speed
(1) 10/100/1000Mbps
Optical interfaces
(1) 1000Mbps
Max. power consumption [W]
1,8
Power via connector/terminal
9V / 0,6A
Operating temperature [°C]
-5 up to 50
Width [mm]
73
Height [mm]
27
Depth [mm]
95
