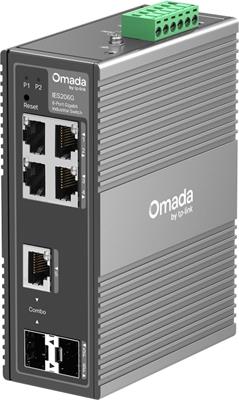

TP-Link IES206G Omada 6port gigabit industrial easy managed switch
Вашата цена с ДДС (%)
0.00
✅ В наличност < 10 Бр.
Планирана Дата Доставка на Куриер до Вас 16-07-2025
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукThe industrial easy managed switch has 4 Gigabit LAN ports, 1 Combo RJ45/SFP slot and 1x SFP. The device has DIN rail mounting. The operation temperature range is between -40 and 75 °C. The devices is covered by IP40-rated aluminum housing.
Key features
- (5) Gigabit Ports (4× RJ45, 1× RJ45/SFP Combo and 1x SFP)

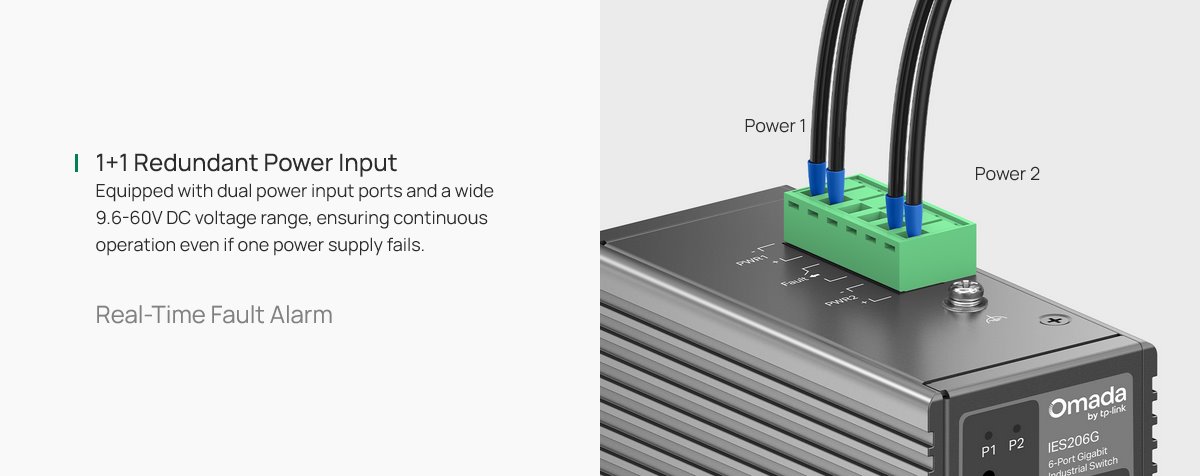

- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Package contents
- Device
- DIN-Rail Mounting Bracket
- Wall-Mounting Plates
- Installation Guide
Свали
Технически параметри
LAN ports
Design
On the wall, DIN rail
Switchning capacity [Gbps]
12
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
8,9
Web management
Yes
Management
Web management, Omada controller
Features
VLAN, QoS, L2
Power type
DC terminal
LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP cages
2 (1x Combo)
Optical interfaces
(1) 1000Mbps + (1) 1000Mbps Combo
Redundant power supply
Yes
Max. power consumption [W]
5,1
Chassis design
Metal
Power via connector/terminal
9,6 .. 60V DC dual redundant
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Width [mm]
45
Height [mm]
129
Depth [mm]
95
