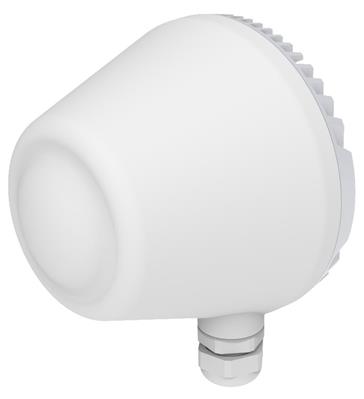

Tachyon TNA-303L-65, 60 GHz compact CPE unit

Описание на продукт

TNA-303L-65 is the latest addition to Tachyon’s 60GHz product line. It offers full support for the unlicensed 60GHz band in the 57–71 GHz range and seamless compatibility with existing TNA models. It delivers speeds of up to 1 Gbps in an ultra-compact and cost-effective design, featuring an integrated antenna with a gain of 32 dBi and a beam angle of 8°. The unit can be used in both PTMP client and PTP modes.

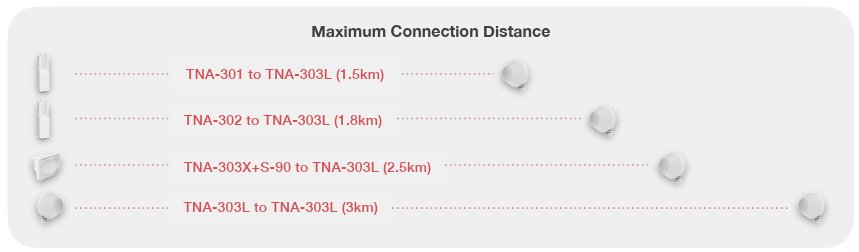

*Distance depends on local country regulations

The TNA-303L-65 unit is equipped with a Gigabit Ethernet port supporting PoE-IN 38–57V, with a maximum power consumption of 15 W. It also features a USB-A port for connecting a 2.4 GHz Wi-Fi adapter, simplifying installation and alignment of the unit.

Key Features

• Compact design
• 60 GHz band support (57–71 GHz)
• Data throughput up to 1 Gbps
• Gigabit Ethernet port and USB-A port for Wi-Fi adapter connection
• PTMP client and PTP operating modes

Package Contents

• Unit
• TNA-M-L mounting bracket
• PoE adapter 48V / 0.5A
• Quick installation guide
