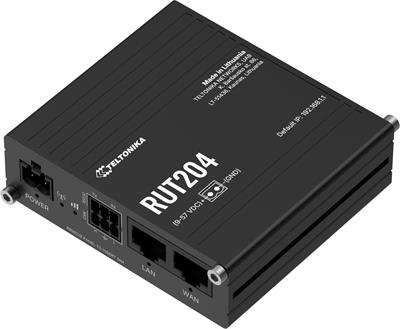

Teltonika RUT204, Industrial 4G Wi-Fi 4 router
Вашата цена с ДДС (20.0%)
173.75 EUR
❌ Артикулът не е наличен. Няма възможност за поръчка.
Без потвърдена дата на доставка
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукThe Teltonika RUT204 is an industrial 4G LTE Wi-Fi 4 router with CAN bus and RS232 interfaces (CANopen and J1939), WAN failover, (2) 10/100Mbps ports (1x LAN, 1x WAN), 2.4GHz Wi-Fi 4 delivering throughput of up to 150Mbps, (3) SMA female connectors for (2) external LTE antennas and (1) GNSS antenna, (1) RP-SMA female connector for an external Wi-Fi antenna, (2) mini SIM slots and eSIM support.
The router is equipped with a modem supporting 4G LTE Cat. 4, 3G and 2G, with data rates of up to 150Mbps downlink and 50Mbps uplink. Power can be supplied via the 2-pin DC terminal block (9-57V) or active (802.3af) and passive PoE (16-57V) on the LAN1 port.
Package contents
- Device
- SIM adapter kit
- Terminal blocks
- 1.5m patch cable
Технически параметри
LAN ports
Max. WAN speed
100M
Power over Ethernet
16 .. 57V DC, 802.3af
Design
Industry
Operating mode
AP Router, Cellular router
Wireless frequency
2.4 GHz, 2G (GSM), 3G (GSM), LTE, GNSS
WiFi standards
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]
150
Security
WPA, WPA2, WPA3, OWE
2.4GHz MIMO
1 x 1 SISO
Type of antenna
Detachable
Detachable antennas
4
RF connectors
(3) SMA female, (1) RP-SMA female
Integrated 4G/LTE radio part
Yes
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
Power type
DC terminal, PoE
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(2) 10/100Mbps
LAN ports 100M
2
PoE type
PoE-In (only)
Max. power consumption [W]
3,5
Serial port
RS-232
Power via connector/terminal
9 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
140
Depth [mm]
83
Width [mm]
83
Height [mm]
25
CPU frequency [MHz]
580
SIM slots quantity
2
SIM slot
Yes
IPv6 support
Yes
Internal storage [MB]
32
Default IP address
192.168.1.1
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
