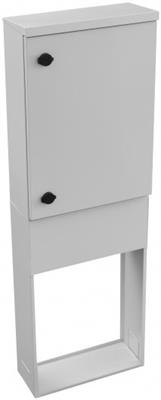

FTTH Fiber cabinet, SZS-43/185/20 FTTH 72J, 36x SC Duplex
Your price incl. VAT (20.0%)
244.91 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 28-10-2026
Manufacturer
Product number
SZS-43/185/20 FTTH 72J +
Product Code
RL019.500
Warranty
36 months
Product description
The outdoor FTTH data cabinet with installation in the ground is used to connect optical cables in front of the house with very easy access. The data cabinet allows the connection of up to 72 optical fibers and the termination of several optical cables. The data cabinet has a gray color of RAL 7035 and a degree of protection is IP 65. The dimensions of the column are 185 × 43 × 20 cm and its smaller lower part is buried in the ground (60 cm). The upper part with the optics is lockable by 2 locks, which are part of the package.
Key Features
- Capacity for up to 72 fibers (up to 36 SC Duplex connectors), up to 5 cartridges
- 60cm recess
- Optical panel mounted on the ground of the data cabinet by using hinges and magnets
- Organization for hanging cables and microtubes coming from the ground
- Part above the ground is made of sheet metal with "Magnelis" coating, 1 mm thick. Underground part is 2 mm thick
- Lockable with 2 hermetic locks
- Gray RAL 7035 colour
- Degree of protection IP 65, anti-vandal protection IK10
