MERCUSYS MS110CP Gigabit desktop switch with 8-port PoE+
New
Your price incl. VAT (%)
0.00
Ordered for stock
Planned Delivery Date by Courier to you 30-07-2025
Product description

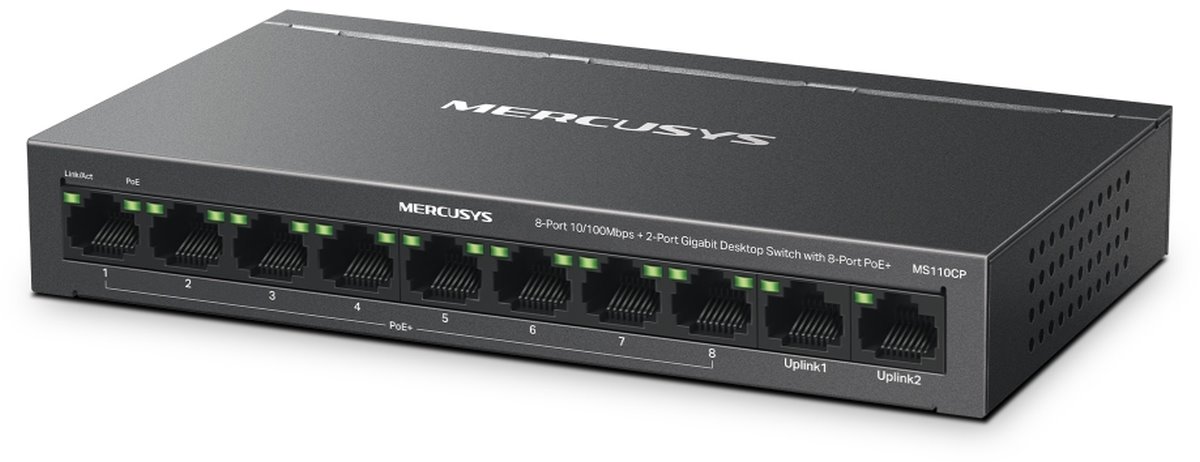

The MS110CP is a 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+, ideal for small and medium business IP surveillance with a 65 W PoE budget. The plug-and-play design makes it for easy deployment without the need for a technician.
Key features

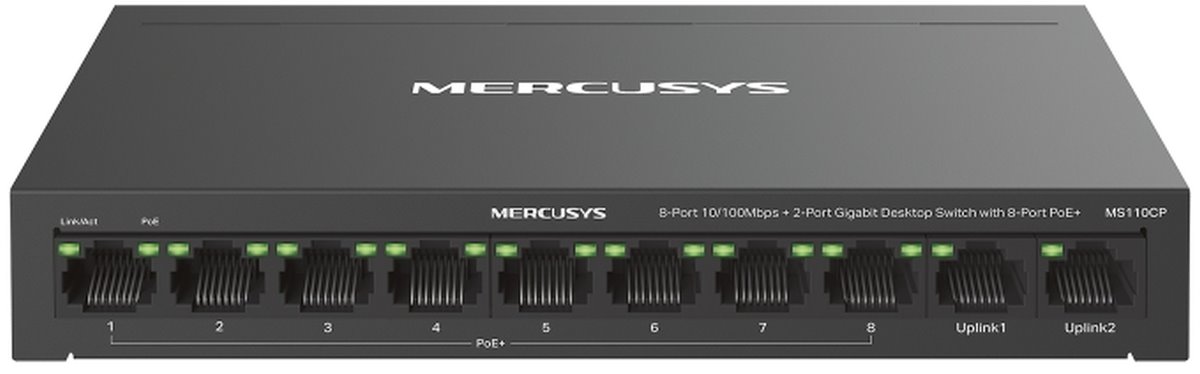

- 10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports

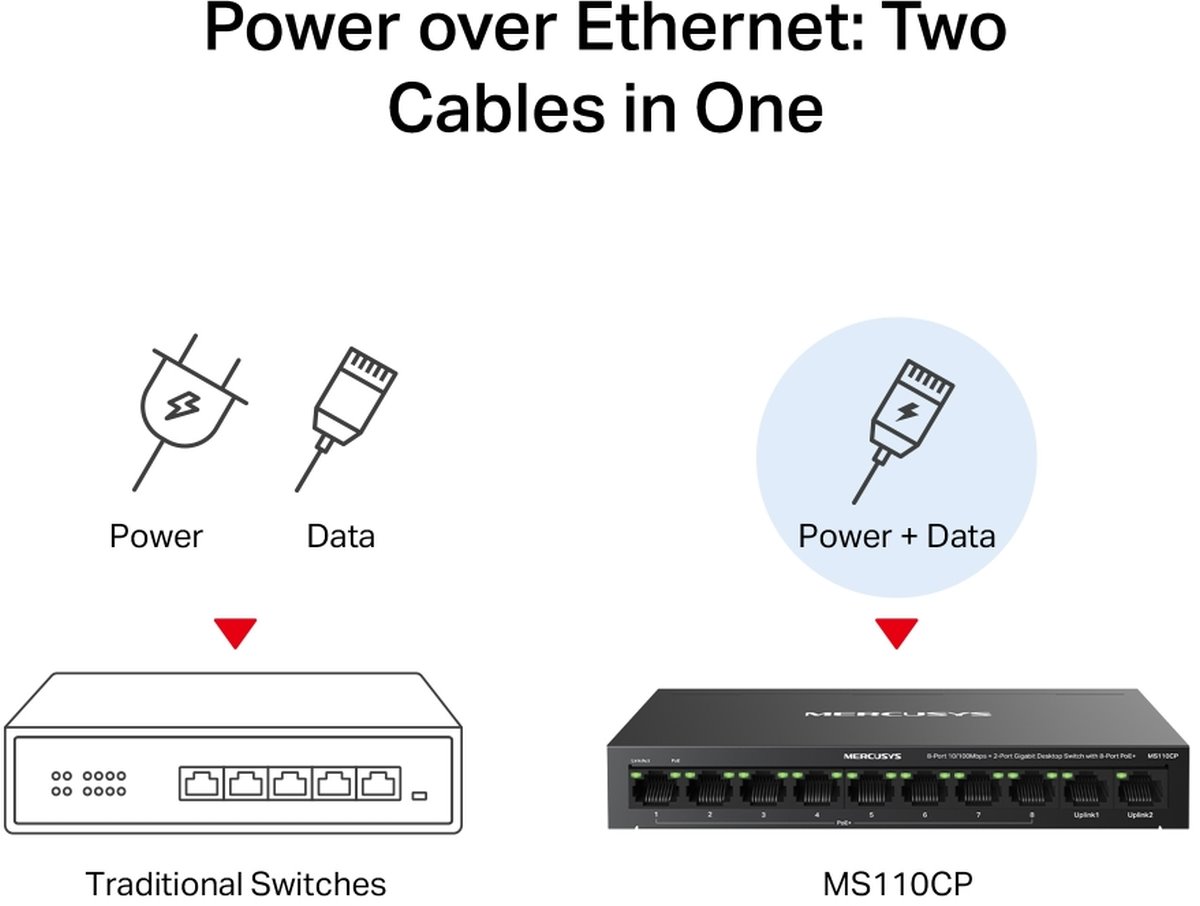

- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for PoE port and 65 W for all PoE ports
- 2× Uplink Ports: MS110CP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

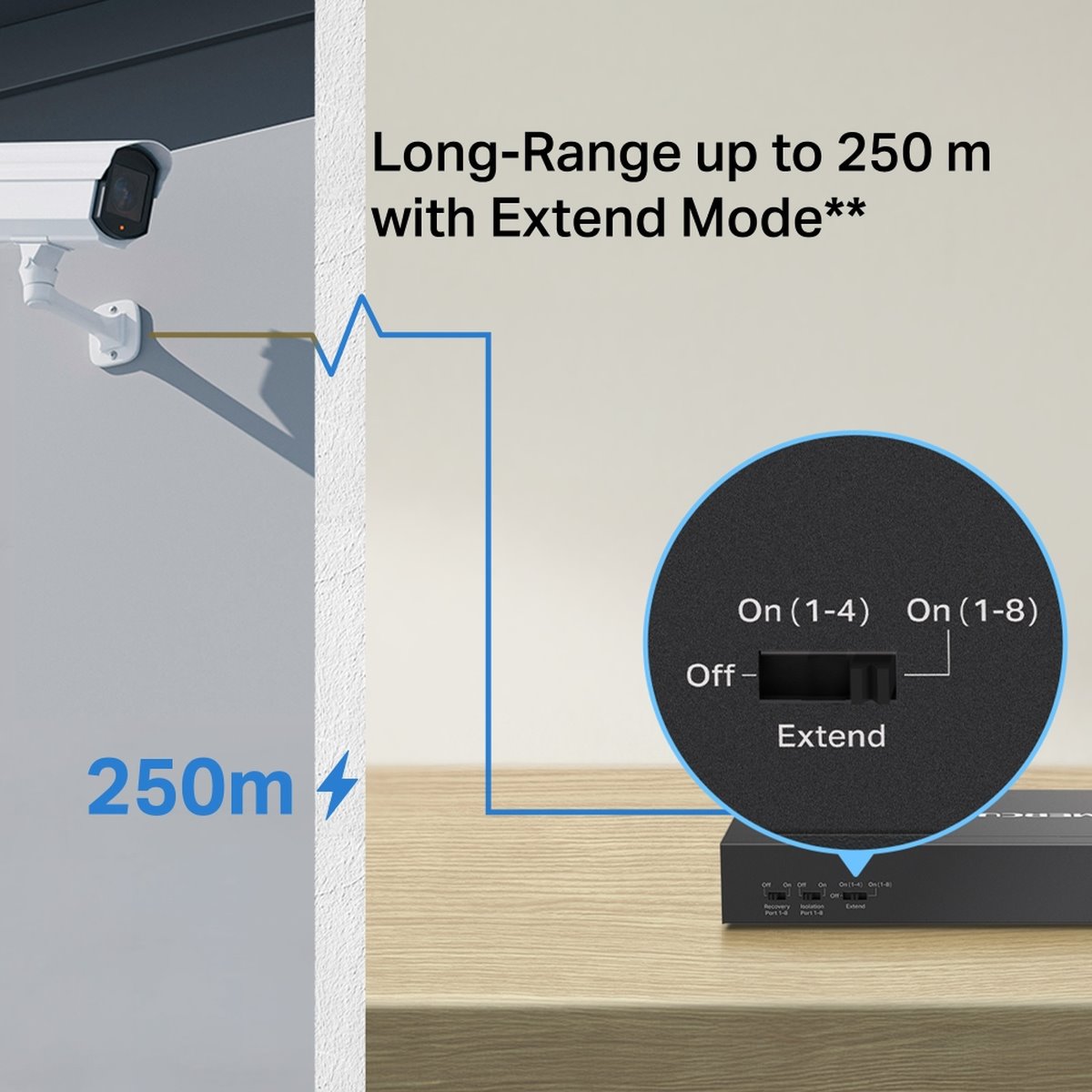

- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode

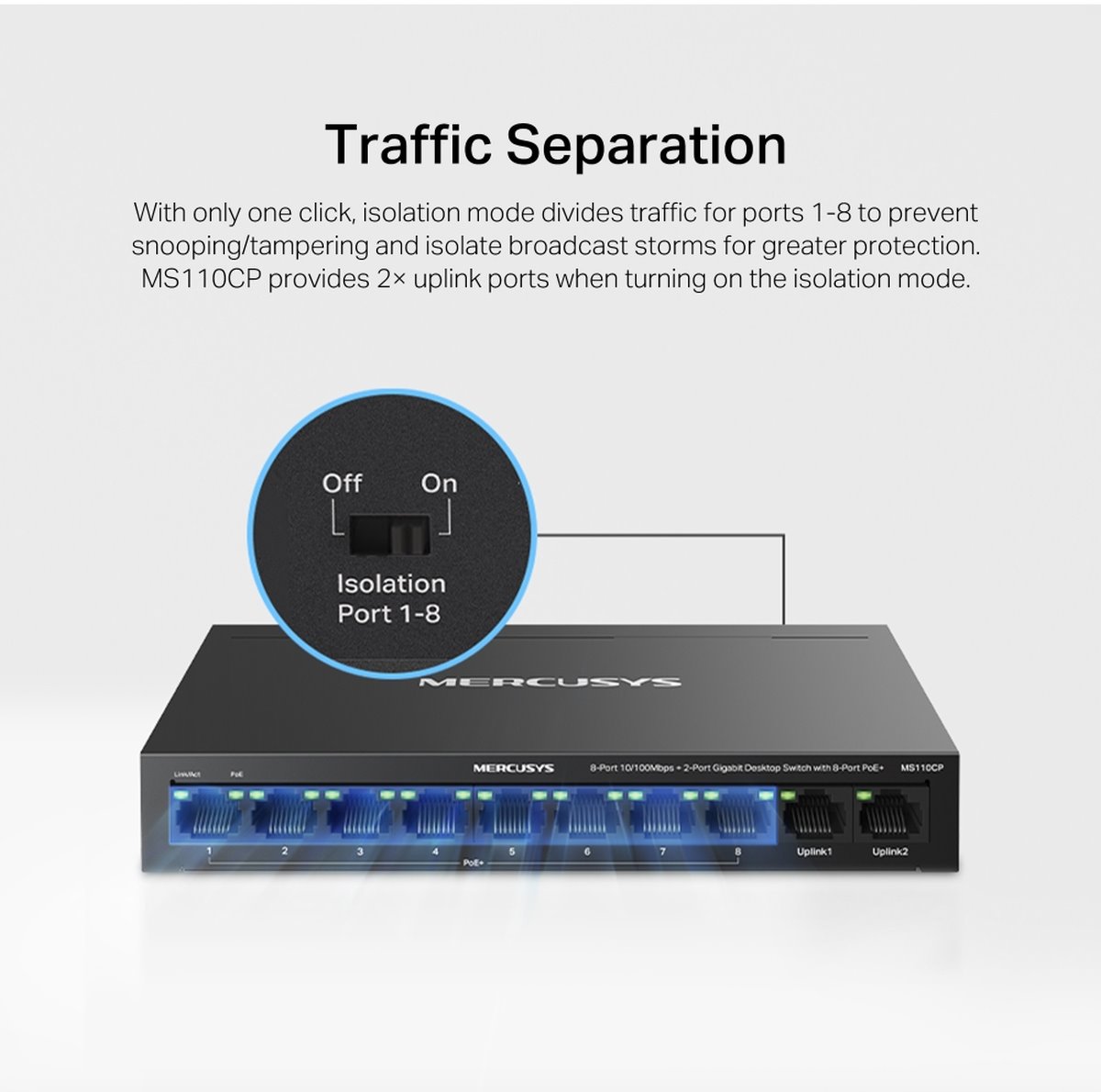

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

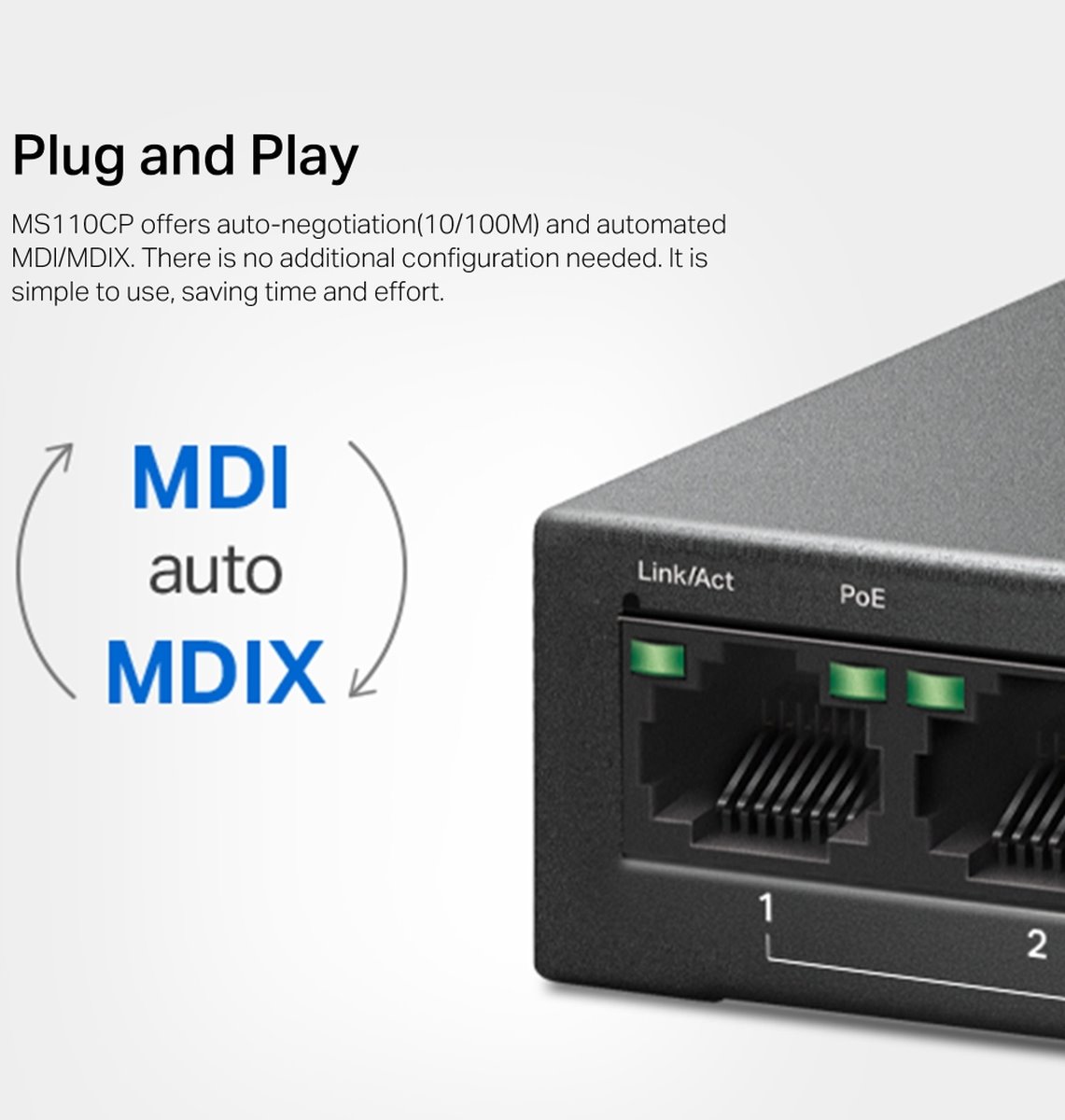

- Plug and Play: Simple to use and saves time and effort

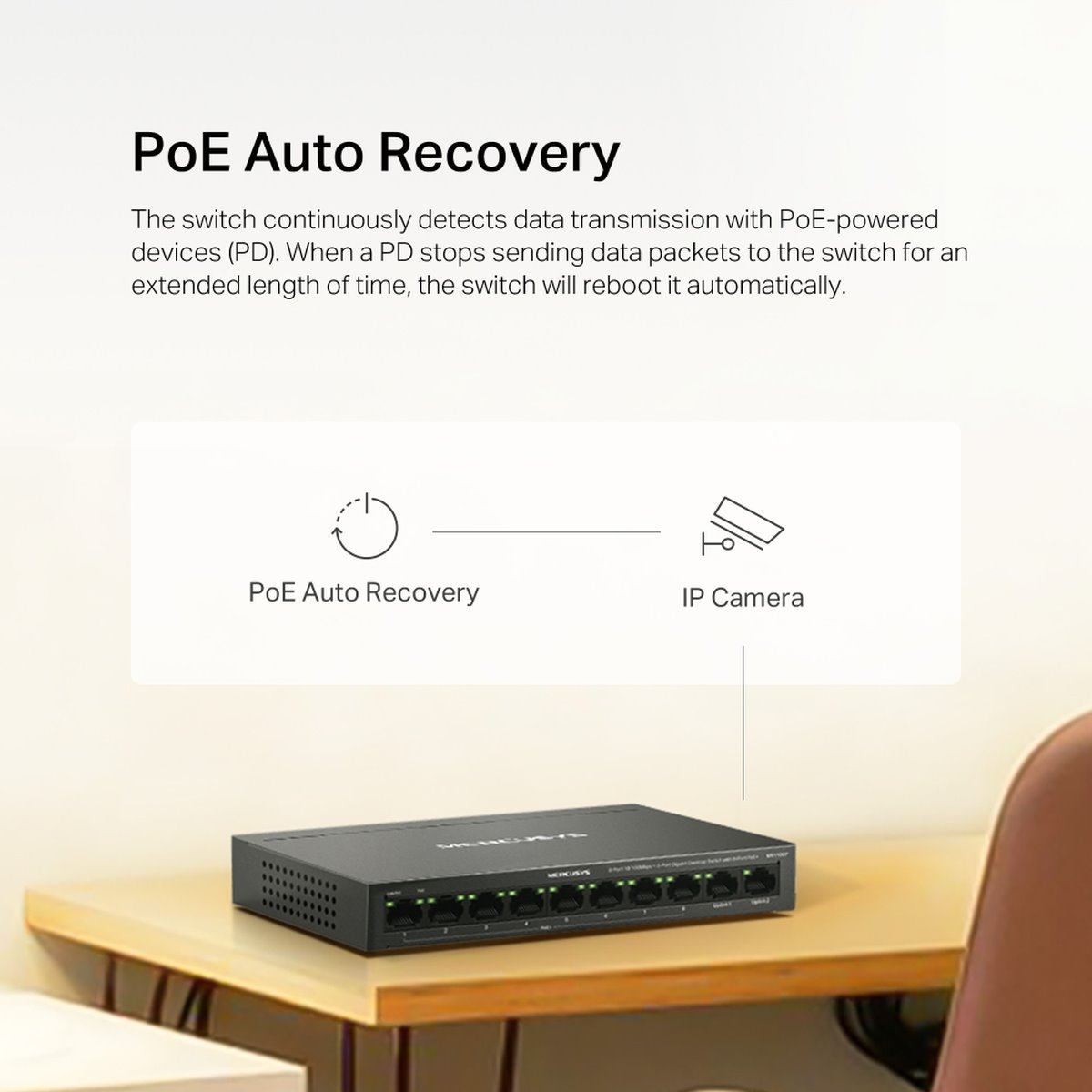

- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
Package contents
- Device
- Power Adapter
- Quick Installation Guide
Download
Technical parameters
LAN ports
Jumbo frame [Bytes]
2048
Design
Desktop, On the wall
Switchning capacity [Gbps]
5,6
MAC address table
2000
Power type
DC connector
Fans
No
LAN ports
10
LAN speed
(8) 10/100Mbps + (2) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
65
Long range PoE - up to 250m
Yes
Max. power consumption [W]
3,5
Chassis design
Metal
Power via connector/terminal
53,5V/1,31A

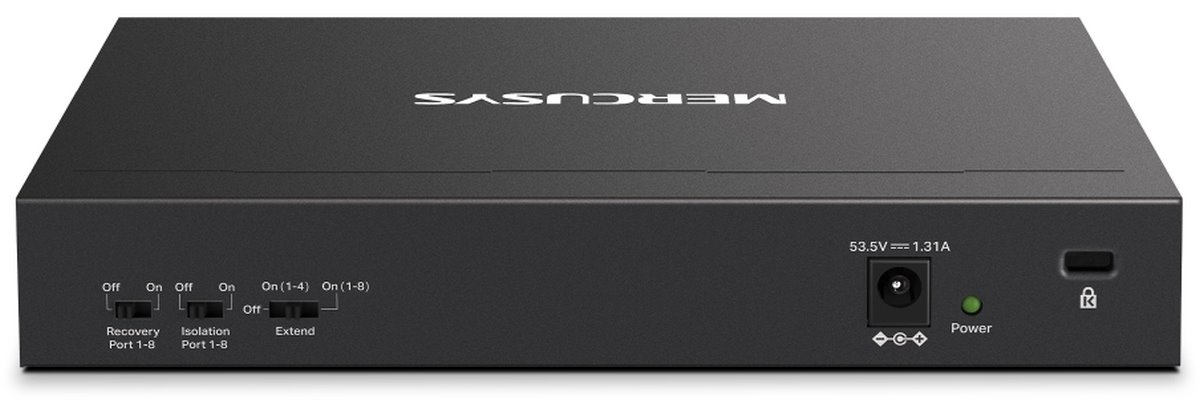

Buttons
Auto Recovery, Extend mode, Isolation port
Operating temperature [°C]
-10 up to 40
Depth [mm]
98
Width [mm]
171
Height [mm]
27
