Grandstream GWN7710R Outdoor L2 Lite managed switch, 4x PoE+, IP66

Product description

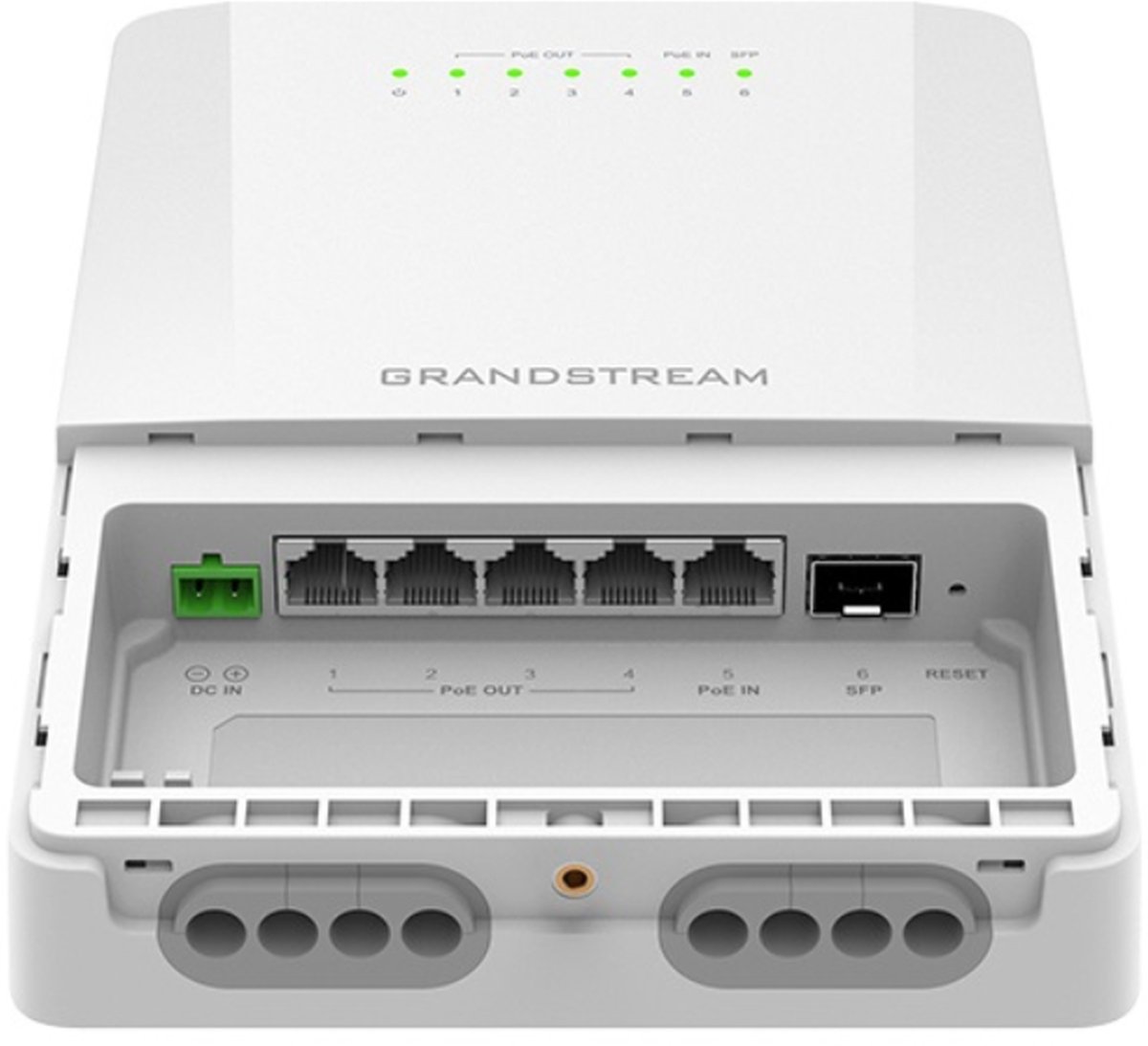

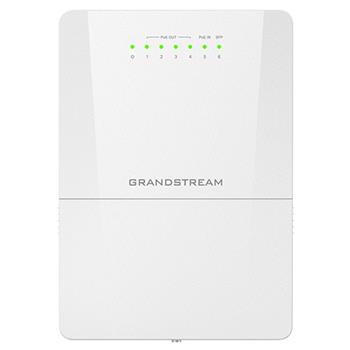

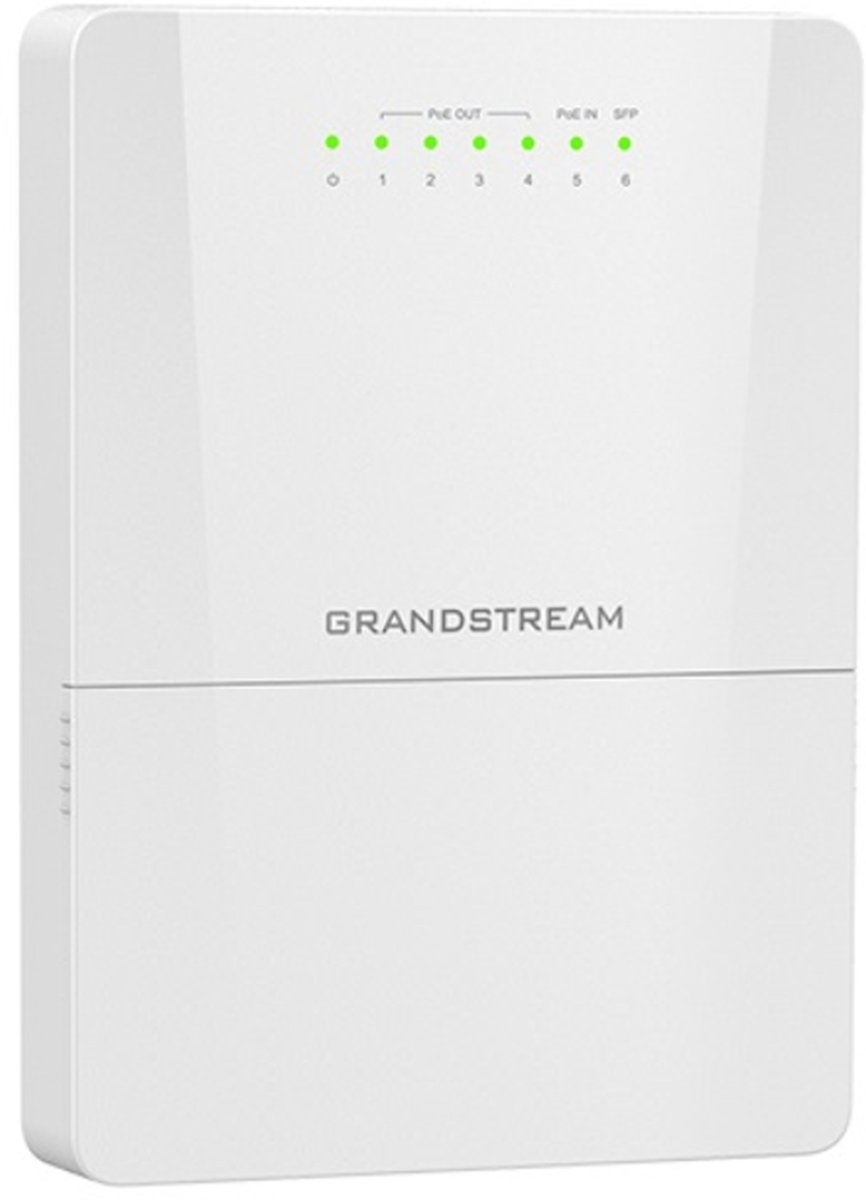

The GWN7710R is a 6-Port (5GE+1SFP) outdoor lite managed PoE switch that features an IP66-rated waterproof and dustproof casing to protect against harsh weather conditions, including rain, snow, and high temperatures.

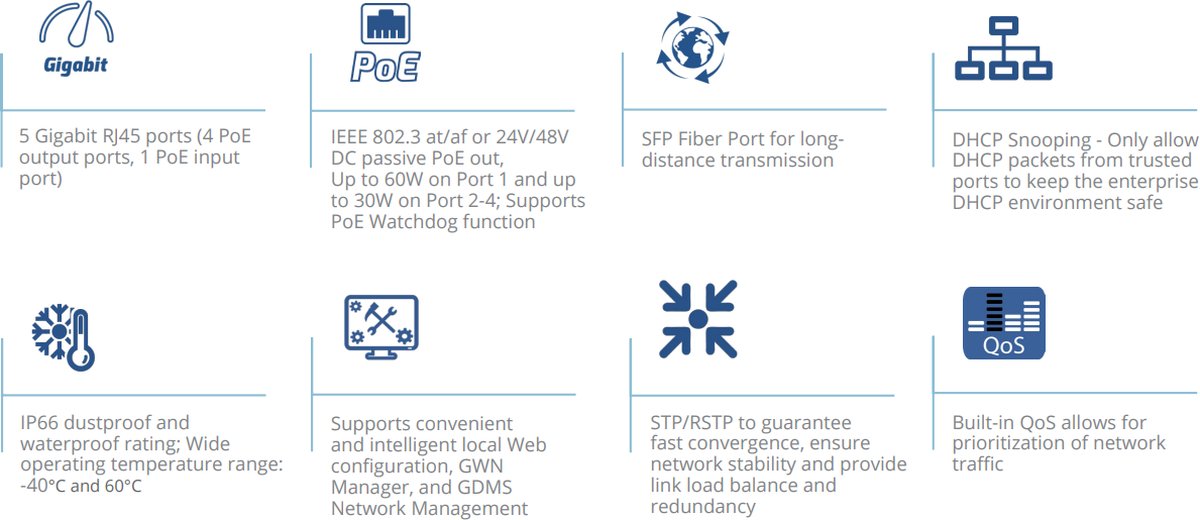

Key features

• (5) Gigabit RJ45 ports (4x PoE output ports and 1x PoE input port)
• IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
• SFP Fiber Port for long-distance transmission
• DHCP Snooping - Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
• IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
• Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking
• STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
• Built-in QoS allows for prioritization of network traffic

Package contents

• Device
• Rack-mounting Standard Brackets
• Quick Installation Guide
• (4) assembled screw
• (4) expansion screw
• (2) Metal straps
• Phoenix connector

Download

https://download.discomp.cz/Grandstream/Datasheets/Datasheet_GWN7710R_English.pdf

Datasheet
