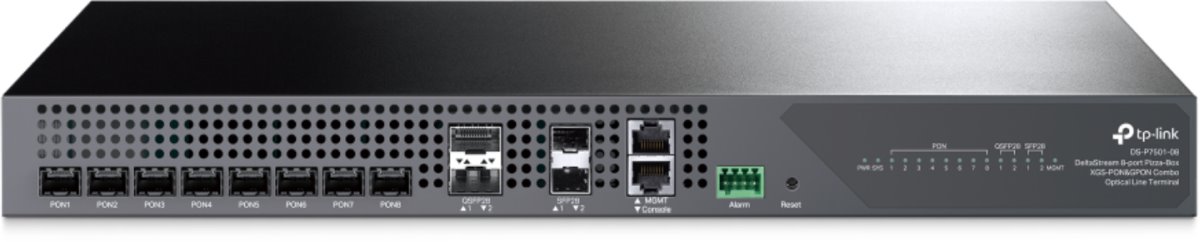

TP-Link DS-P7501-08 DeltaStream 8-Port Pizza-Box XGS-PON & GPON
Your price incl. VAT (%)
0.00
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description
(8) SFP XGSPON&GPON Combo ports, (2) 100G QSFP28 uplink ports, (2) 25G SFP28 uplink ports, RJ45 Console port, Gigabit RJ45 Manage port, Hot-swap redundancy power, 2 AC or 2 DC or AC+DC power input.
Key features
- (8) PON Ports: (8) XGS-PON & GPON combo ports support both XGS-PON and GPON service delivery.
- High Scalability: Supports a 1:128 splitting ratio for GPON services and 1:256 for XGS-PON.
- High-Speed Uplink Ports: (2) 100G QSFP28 and (2) 25G SFP28 ports offer high-bandwidth uplink connectivity.
- Dual Power Supplies: Carrier-class reliability with dual hot-swappable power supplies: AC, DC, or mixed-power supplies.
- L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs.
- Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.
Package contents
- Device
- AC Power Cord
- Console Cable
- Mouting Brackets, Screws and Rubber Feet
- Installation Guide
Download
Technical parameters
LAN ports
Transfer type
XGS-PON
LAN ports
1
PON SFP cages
8
Max. power consumption [W]
125
Power via connector/terminal
Dual Power Supplies: 2 AC, 2 DC or AC+DC, AC: 100V~240V, 50/60Hz DC: -38.4V~-72V
Buttons
Reset
Operating temperature [°C]
0 up to 50
Width [mm]
440
Height [mm]
44
Depth [mm]
330
