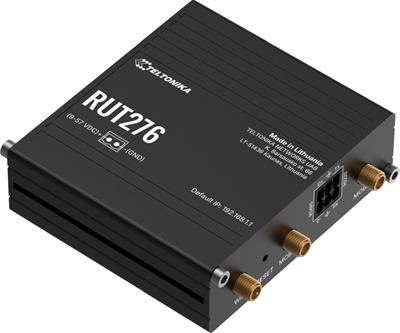

Teltonika RUT276 compact RedCAP 5G router
Your price incl. VAT (20.0%)
302.42 EUR
Ordered for stock
Planned Delivery Date by Courier to you 03-12-2025
Product description
Bring the core 5G benefits into your IoT projects with the RUT276 Redcap router. Enjoy higher throughput and lower latency than traditional 4G networks can offer, without the cost of a full 5G module. Serial RS232/RS485 interfaces enable seamless integration with industrial equipment, whereas dual SIM and automatic failover ensure always-on connection. Its industrial design and native protocol support makes it perfect for IIoT and M2M applications where continuous uptime is critical.
Key features
- RedCAP 5G: Low latency, high capacity, competitive pricing

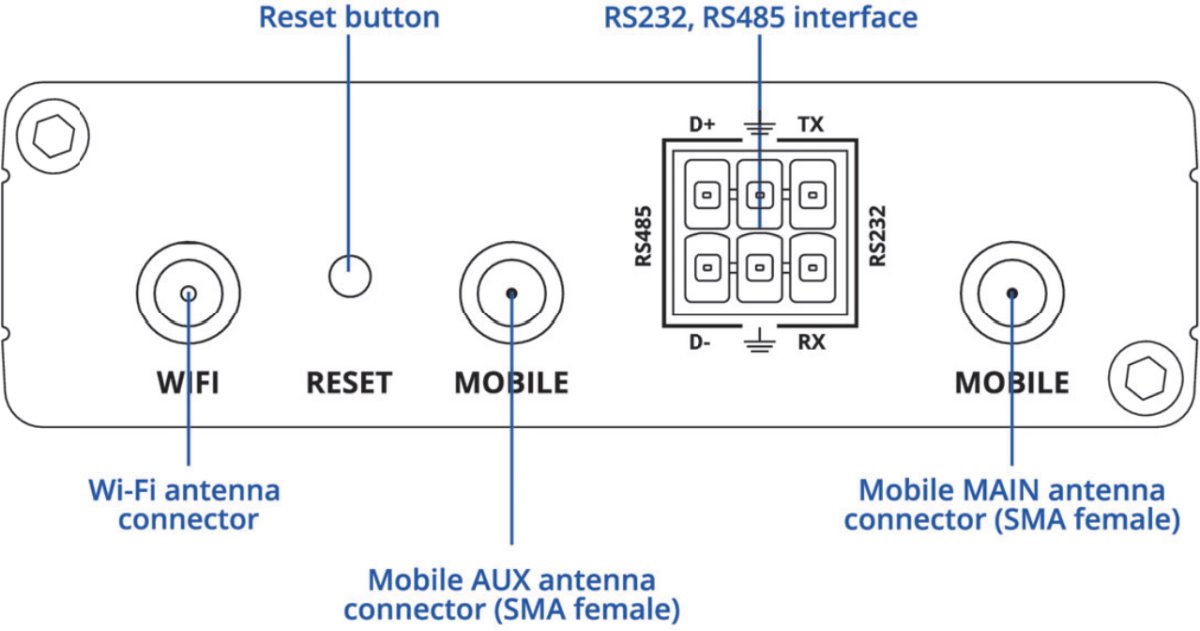

- Serial Integration: Built-in RS232/RS485 to seamlessly connect with industrial equipment
- Protocol-Ready: Native support of Modbus, OPC UA & BACnet for industrial systems
- Industrial Design: Rugged aluminum build, wide temperature support, and flexible mounting
Package contents
- Device
- (2) 3PIN connector
- Hex key
- SIM adapter KIT
- 2PIN terminal block
- Quick Start Guide
Download
Technical parameters
LAN ports
Power over Ethernet
16 .. 57V DC
Design
On the wall, Desktop, DIN rail
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE, Tinc
Operating mode
Client, AP Router, Access Point, Cellular router
Management
Web management, SSH, Teltonika RMS
Wireless frequency
2.4 + 5 GHz (dual band), LTE, 4G (GSM), 5G (GSM)
WiFi standards
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]
300
Security
WPA, WPA2, WPA3
2.4GHz MIMO
1 x 1 SISO
5GHz MIMO
1 x 1 SISO
Type of antenna
Detachable
Detachable antennas
3
RF connectors
(1) RSMA female, (2) SMA female
Integrated 4G/LTE radio part
Yes
Power type
DC connector, PoE
4G/LTE bands support
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (5) 850 MHz, (12) 700 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (66) 1700 MHz, (71) 600 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n66) 1700 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
2
LAN speed
(2) 10/100Mbps (1x LAN/1x WAN)
Max. power consumption [W]
3,5
Power via connector/terminal
9 .. 57V DC
Buttons
Reset
Weight [g]
132
Width [mm]
83
Height [mm]
25
Depth [mm]
83
CPU
Mediatek, 580 Mhz, MIPS 24KEc
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
32
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
