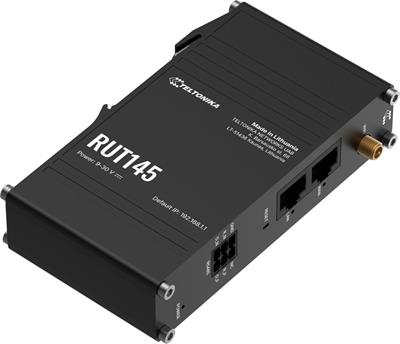

Teltonika RUT145 Wi-Fi router
Your price incl. VAT (20.0%)
66.83 EUR
Ordered for stock
Planned Delivery Date by Courier to you 03-12-2025
Product description
The RUT145 is an industrial router with RS485 communication for manufacturing and automation, specifically designed to bridge the communication gap between RS485 field devices and IP networks. It provides seamless Ethernet/Wi-Fi connectivity combined with a native RS485 multi-drop interface. The device, running on RutOS, offers powerful network security and industrial data collection tools. Its narrow, DIN-rail-mountable design and integration with the RMS platform ensure secure remote and cost-efficient remote management at scale.
Key features

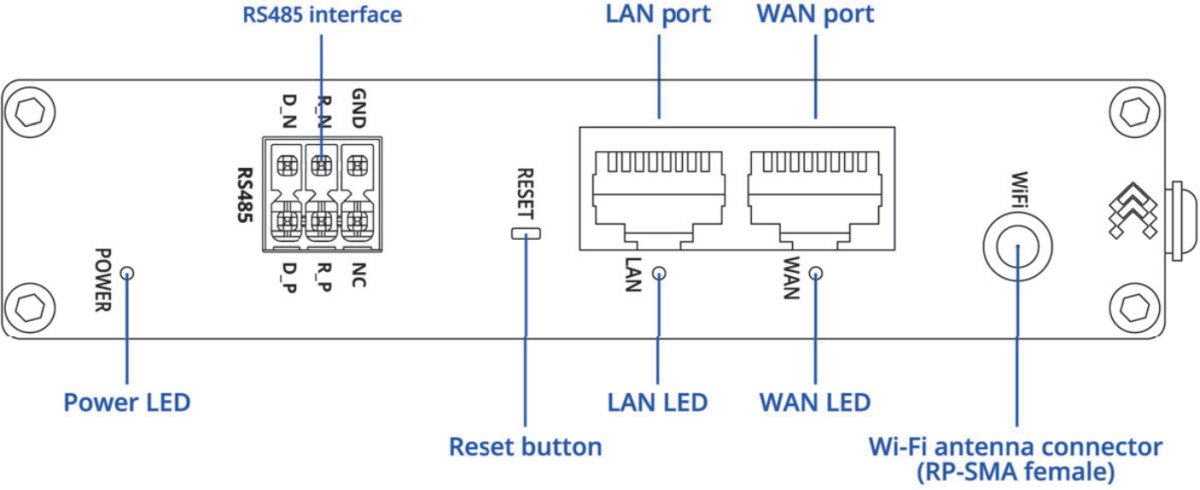

- NATIVE RS485 CONNECTIVITY: Connect and manage multiple devices on a single RS-485 multi-drop bus
- CLOUD-READY DATA COLLECTION: Collect and convert industrial data with Data to Server tool and native protocol support
- DESIGNED FOR INDUSTRY: Narrow footprint with integrated DIN rail mounting and top-entry terminal block power
- COMPLETE REMOTE CONTROL: Leverage the RMS platform for configuration, maintenance, VPN access, and unlimited data collection
Package contents
- Device
- 3PIN power connector
- (2) 3PIN connector
- Quick Start Guide
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 30V DC
Protection class
IP30
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE, Tinc
Management
Web management, SSH, Teltonika RMS
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]
300
Security
WPA, WPA2, WPA3
RF connectors
(1) RP-SMA female
Power type
DC terminal
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
1
LAN speed
(2) 10/100Mbps (1x LAN/1x WAN)
Max. power consumption [W]
2

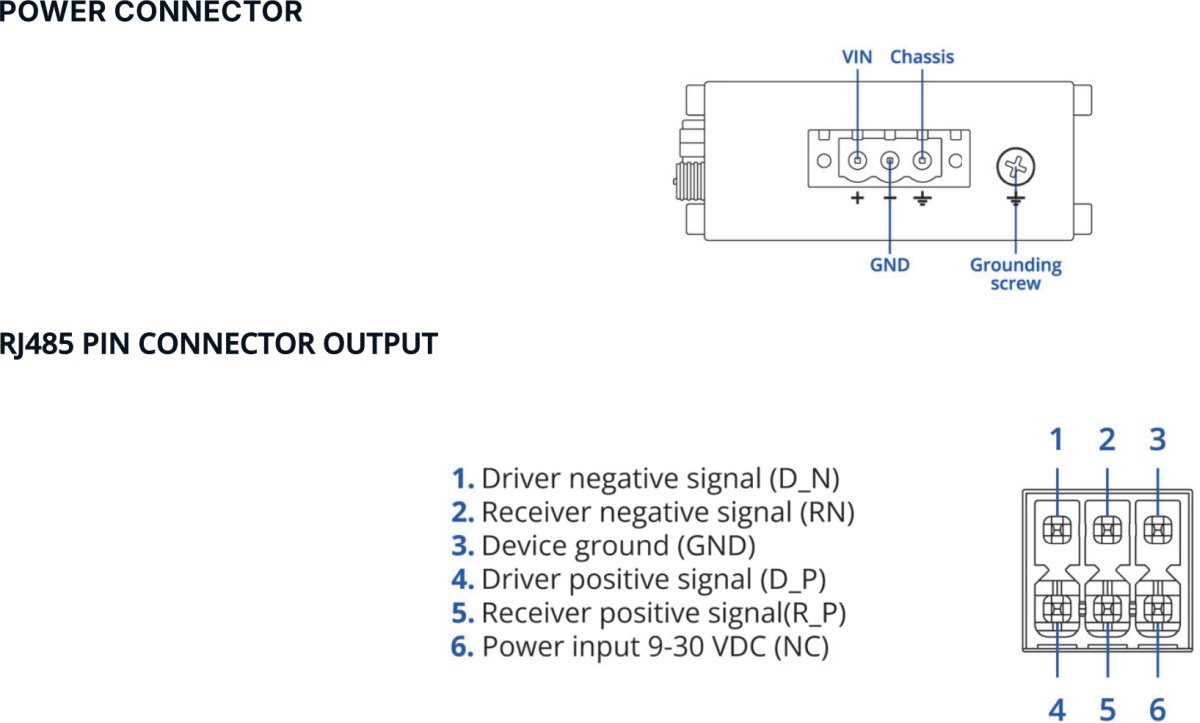

Serial port
RS-485
Power via connector/terminal
9 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
140
Width [mm]
113
Height [mm]
25
Depth [mm]
69
CPU
Mediatek, 580 Mhz, MIPS 24KEc
CPU frequency [MHz]
580
Default IP address
192.168.1.1
Internal storage [MB]
16
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
