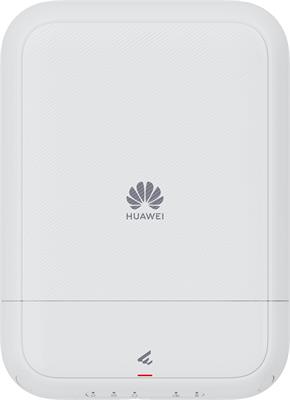

Huawei AP771 - WiFi7 outdoor Dual Band AP, omnidirectional, IP65
Your price incl. VAT (20.0%)
159.41 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description
Huawei eKitEngine AP771 is a high-performance outdoor access point with Wi-Fi 7 support. It operates simultaneously in two bands (2.4GHz and 5GHz) and features modern technologies such as MU-MIMO, 4096-QAM, Multi-RU, OFDMA, MLO and preamble puncturing. The AP is equipped with a durable, fully sealed enclosure with IP65 protection. It provides connectivity with a total throughput of up to 3.57Gbps and has a maximum power consumption of 18.8W.
Key features
- Wi-Fi 7 (802.11be) - extremely fast and stable connectivity
- Total throughput up to 3.57Gbps - 0.69Gbps on 2.4GHz (2×2) and 2.88Gbps on 5GHz (2×2)
- (1) 2.5G PoE+ port with 802.3at/af PoE+ support (functions are limited when using 802.3af)
- Coverage radius up to 130 meters thanks to built-in omnidirectional antennas
- Support for Fit / Fat / Cloud modes - flexible deployment in various environments
- Easy deployment and management via the HUAWEI eKit application
- IP65 weather-resistant enclosure and 6kA surge protection on the Ethernet port
Download
Technical parameters
LAN ports
Maximum modulation
4096 QAM
Power over Ethernet
802.3af, 802.3at
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11a, 802.11ac, 802.11ax, 802.11b/g, 802.11be, 802.11n
MU-MIMO
Yes
Transmission speed - 2.4GHz [Mb/s]
688
Transmission speed - 5GHz [Mb/s]
2880
Tx power 2.4GHz [dBm]
28
Tx power 5GHz [dBm]
27
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Azimuth beam width (-6dB) [°]
360
Type of antenna
Built-in
Purpose
Outdoor
Roaming
Yes
Antenna gain [dBi]
7
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
18.8
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Weight [g]
1140
Depth [mm]
51
Width [mm]
196
Height [mm]
270
