Wi-Tek WI-PCES206-O outdoor Cloud Easy Smart PoE switch, 4 x PoE
Your price incl. VAT (20.0%)
44.87 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 04-03-2026
Product description

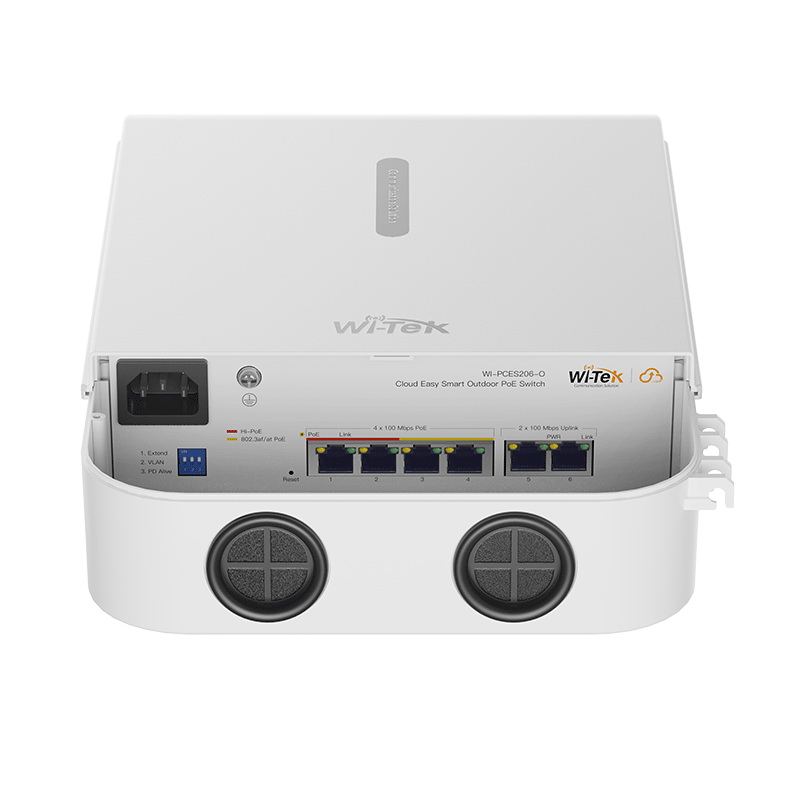

The outdoor PoE switch Wi-Tek WI-PCES206-O is equipped with (6) 10/100 Mbps ports in a configuration of (2) UP-link and (4) PoE-OUT. Two of the PoE-OUT ports can power devices with up to 45 W per port thanks to HI-POE, while the remaining two support 802.3af/at up to 30 W per port. The total PoE budget is 60 W. With its IP65 rating, the switch is designed for outdoor wall or pole installations.
Key Features
- Wi-Tek Cloud management: easy device management and monitoring via a cloud portal or mobile app allows you to manage your devices anytime and from anywhere.
- Outdoor design: IP65 rating and an operating temperature range from -30 °C to 60 °C.
- ONVIF: automatic detection of IP cameras supporting the ONVIF protocol.
- DIP switch for mode configuration:
- 1. Extend: the transmission distance of PoE ports can reach up to 250 m with a reduced link speed of 10 Mbps.
- 2. VLAN: port isolation – each PoE port can send data only to the up-link port.
- 3. PD Alive: PoE watchdog that can detect and restart unresponsive devices powered via PoE.
Note: The Eweb channel tunnel can be created only when the easy smart switch is linked with the other type of Wi-Tek cloud management device, such as cloud L2, L3 management switch, gateway, wireless AP, etc.
Package Contents
- Device
- Quick Installation Guide
- Power cable
- (2) Rubber plugs
- (2) Metal mounting straps
Download
Technical parameters
LAN ports

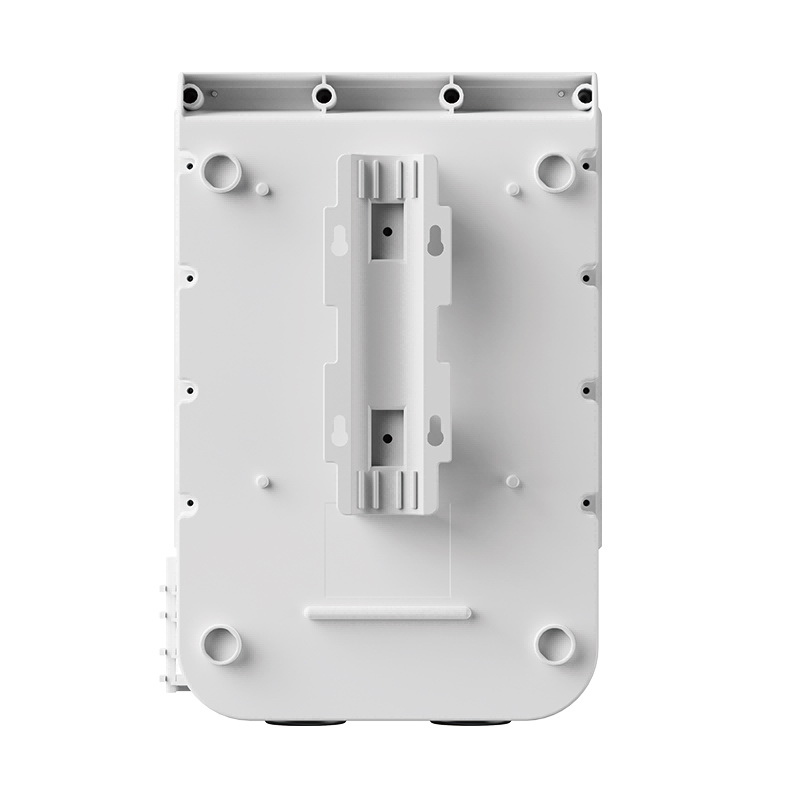

Mounting
On the wall, On the mast
Design
Outdoor, On the mast
Switchning capacity [Gbps]
1,2
MAC address table
8000
Jumbo frame [Bytes]
9216
Web management
Yes
Management
Wi-Tek Cloud, Web management
Features
DHCP snooping, QoS, VLAN
Power type
Mains power (230V)
Fans
No
LAN ports
6
LAN speed
(6) 10/100Mbps
Max. LAN ports speed
100M
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at
PoE Out ports
4
PoE budget [W]
60
Long range PoE - up to 250m
Yes
Max. power consumption [W]
2,7
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Weight [kg]
1
Width [mm]
210
Height [mm]
314
Depth [mm]
89
Default IP address
Dynamic from DHCP, 192.168.0.1
Default login and password
Is set by the user at the first startup
