RF elements Bracket and TwistPort adapter kit for Wave AP Gen2
Your price incl. VAT (20.0%)
59.14 EUR
Ordered for stock
No confirmed delivery date
244.83 EUR excl. VAT
344.96 EUR excl. VAT
344.96 EUR excl. VAT
560.57 EUR excl. VAT
560.57 EUR excl. VAT
Product description

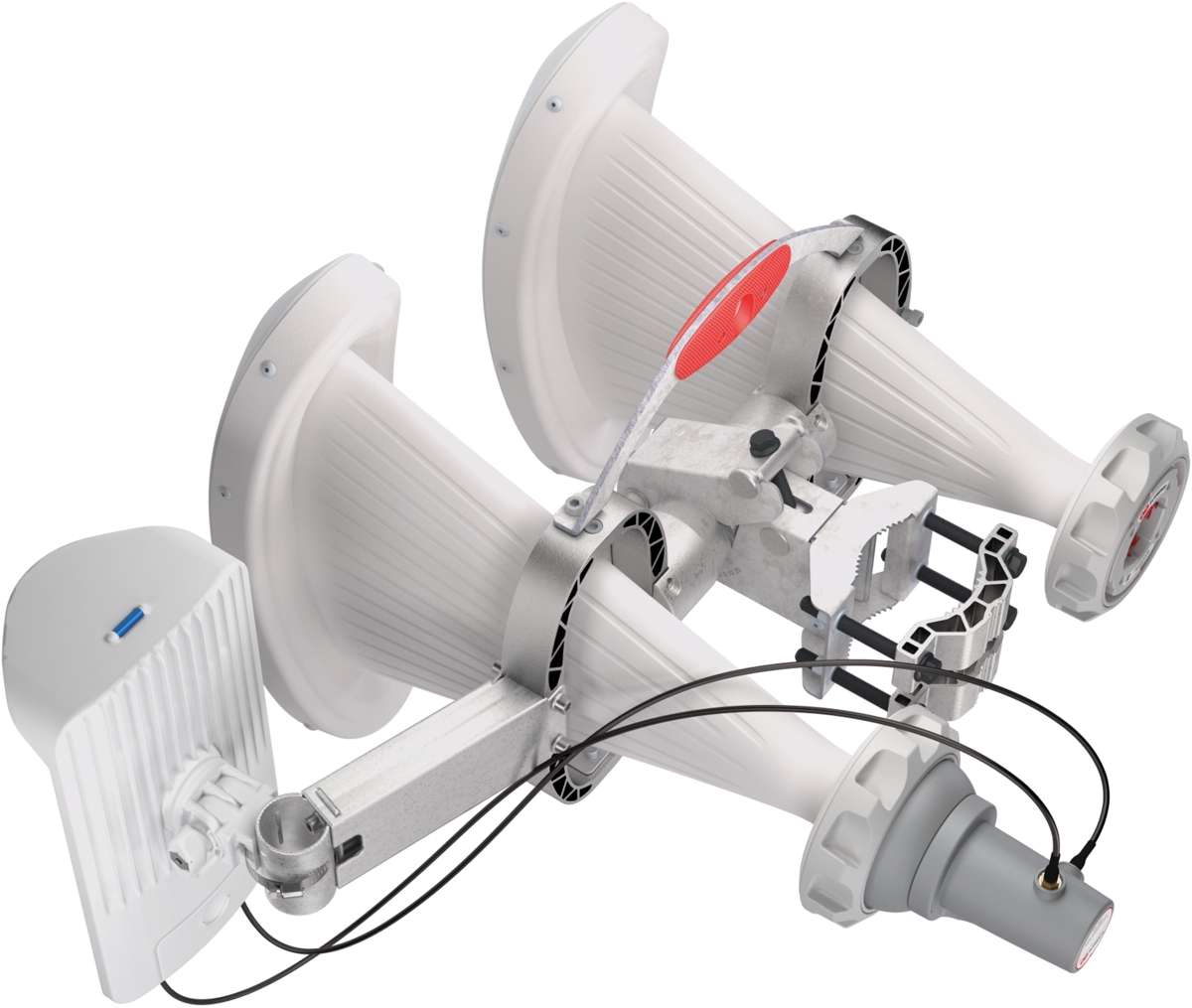

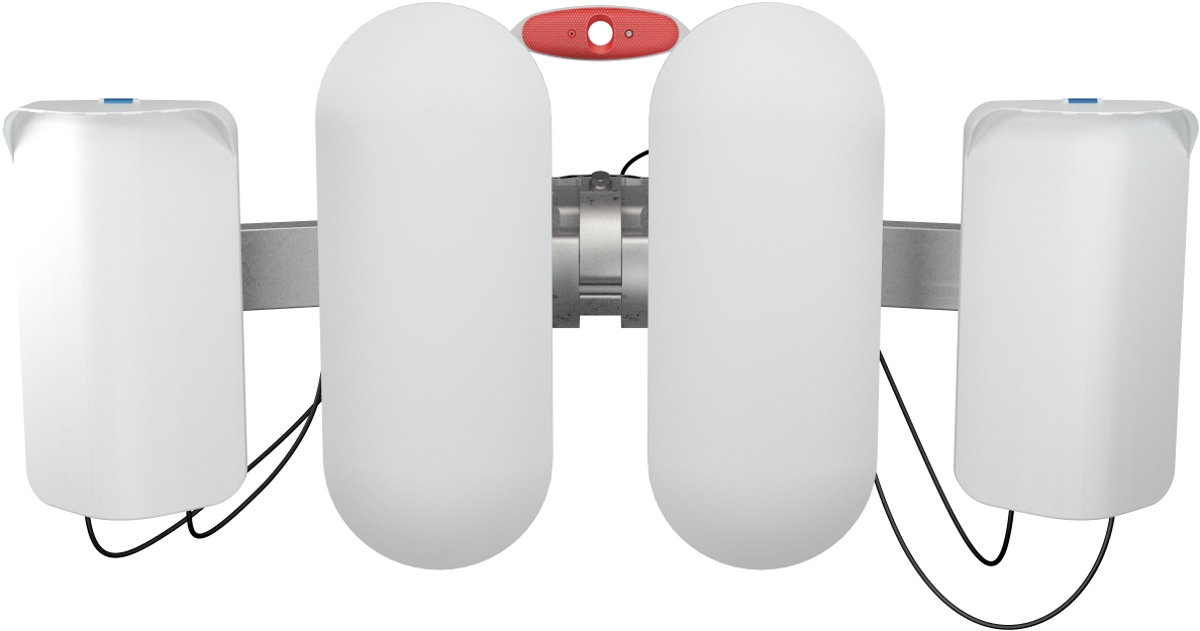

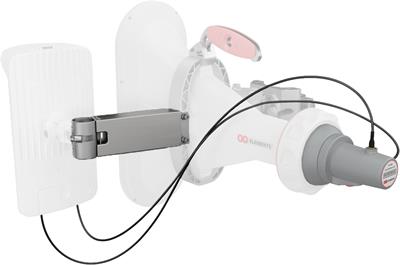

The RF elements BR-WG2-BUNDLE is a mounting kit designed to attach the Wave-AP-Gen2 directly to an asymmetrical TwistPort antenna. Although the BR-WG2 mount was specifically designed for the UI WaveAP Gen2, it can also be used with a wide range of other devices.
The BR-WG2 is compatible with any RF elements asymmetrical Horn antenna that uses the structural aluminum ring. It is also compatible with the latest 6GHz Wideband Horn antennas, older 5GHz AH-TP models and all asymmetrical 4x4 Horn antennas.
Package contents
- BR-WG2 mount
- TPA-SMA TwistPort adapter
- (2) RP-SMA pigtails RP-SMA-FLEX-1M
Download
Technical parameters
LAN ports
Polarization
VH
VSWR
< 1,8
Wireless frequency
5 GHz
RF connectors
(2) RSMA male
Weight [g]
600
