Jumbo frame [Bytes]

12000

Design

Desktop, On the wall

Switchning capacity [Gbps]

60

MAC address table

4000

Web management

Yes

Management

Web management, Wi-Tek Cloud

Features

VLAN

Power type

DC connector

Fans

No

LAN ports

8

LAN speed

(8) 100/1000/2500 Mbps

Max. LAN ports speed

2.5G

PoE type

PoE-Out (only)

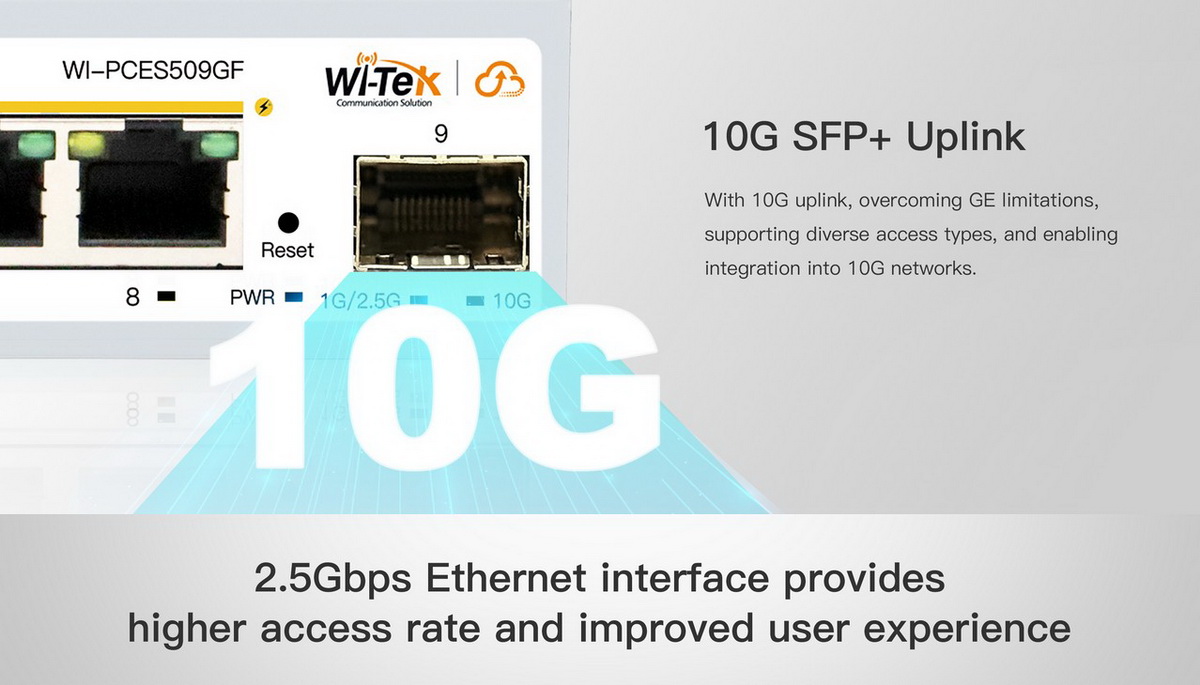

SFP+ cages

1

Optical interfaces

(1) 1/2.5/10Gbps

PoE-Out standards

802.3af, 802.3at

PoE Out ports

8

PoE budget [W]

130

Max. power consumption [W]

6,6

Chassis design

Metal

Power via connector/terminal

55V/2.8A

Buttons

Reset

Operating temperature [°C]

-10 up to 50

Weight [g]

480

Depth [mm]

94

Width [mm]

168

Height [mm]

32

Default IP address

Dynamic from DHCP, 192.168.0.1

Default login and password

Is set by the user at the first startup
