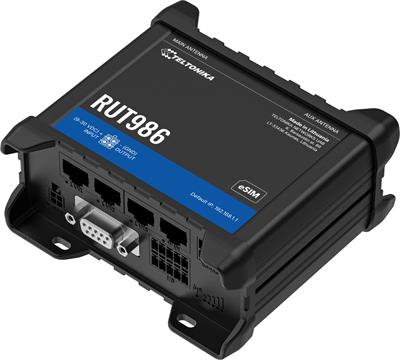

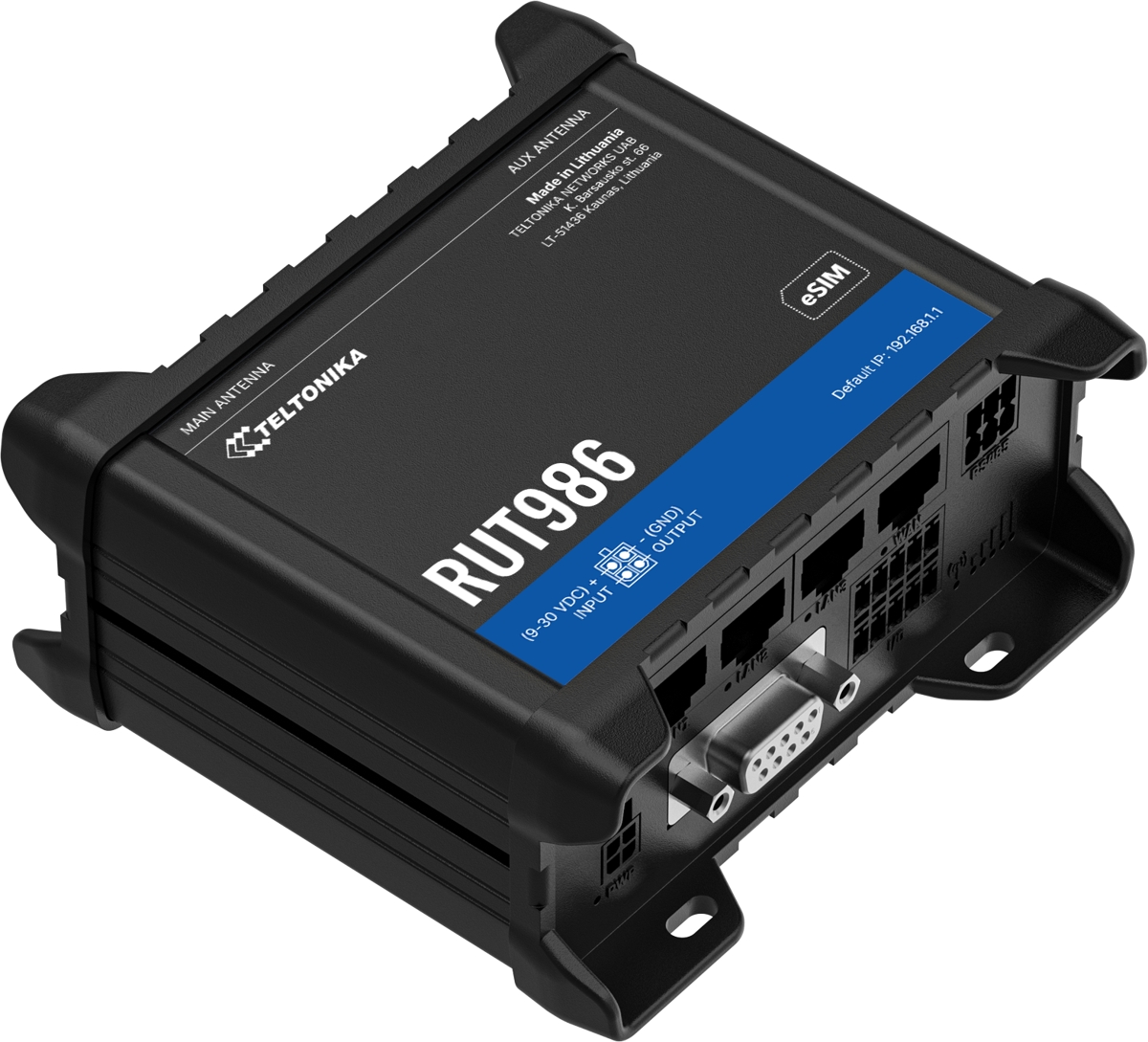

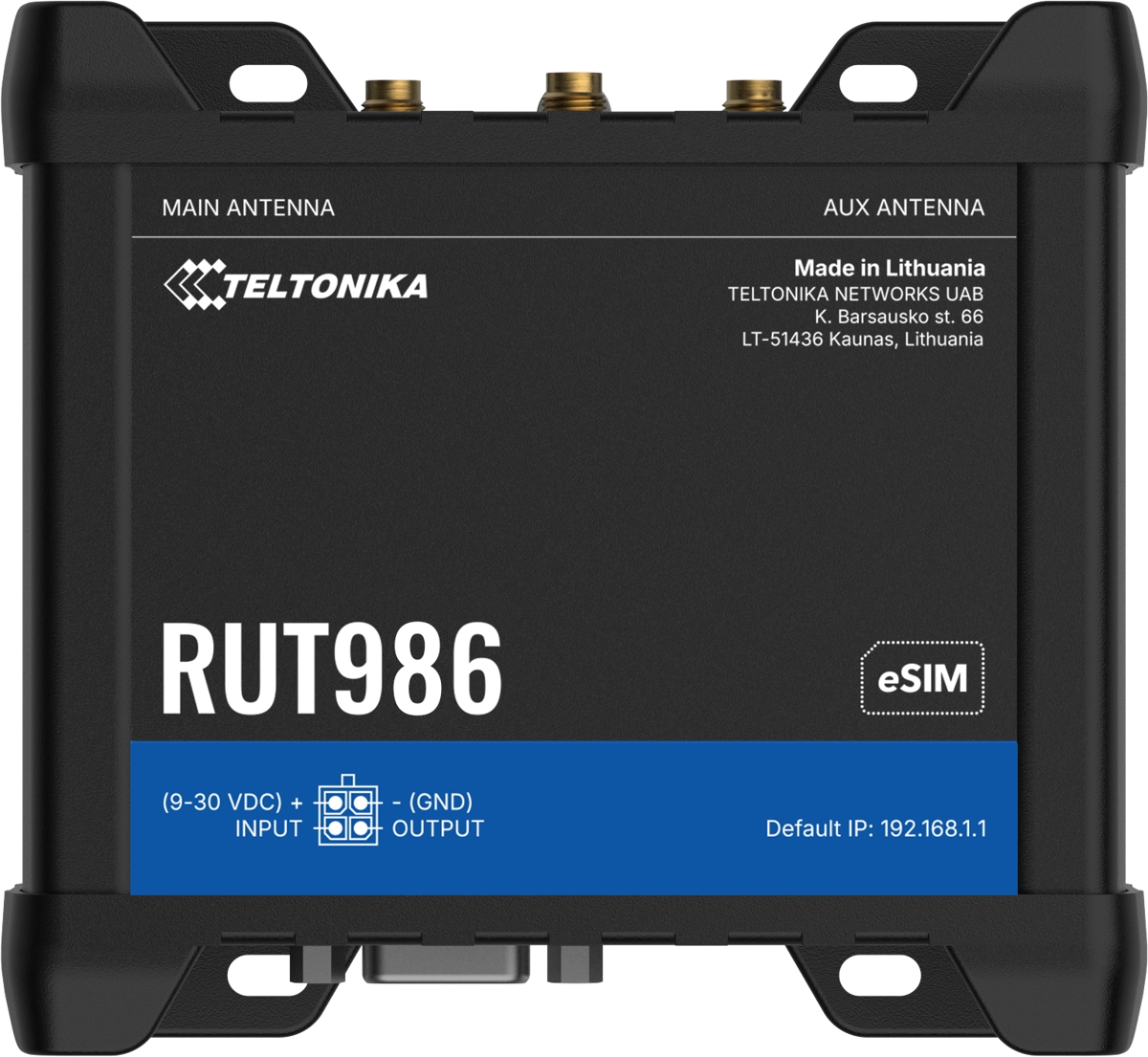

Teltonika RUT986, Industrial 4G Wi-Fi 4 router
Your price incl. VAT (20.0%)
260.68 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

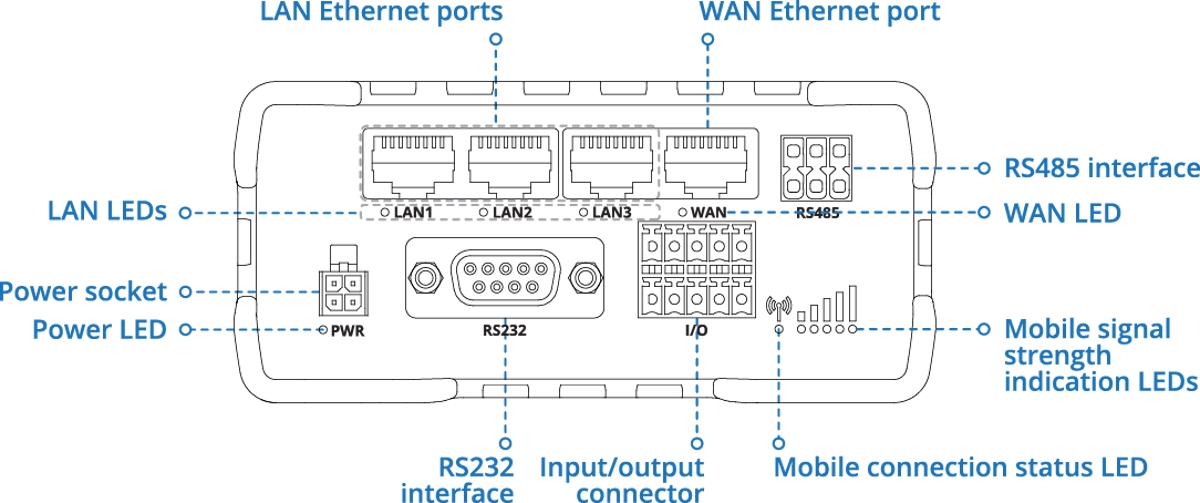

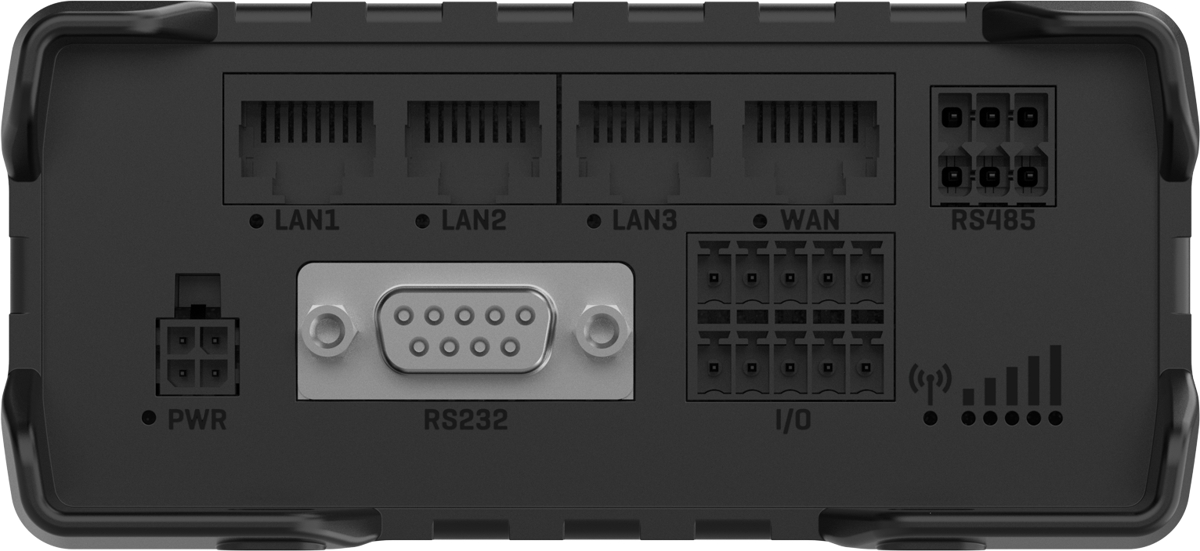

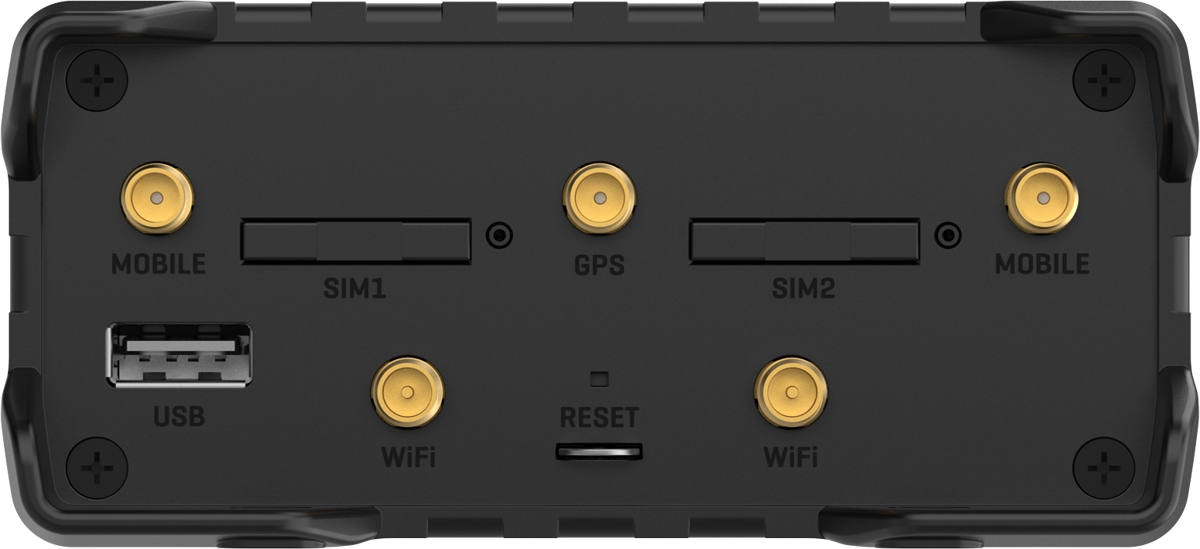

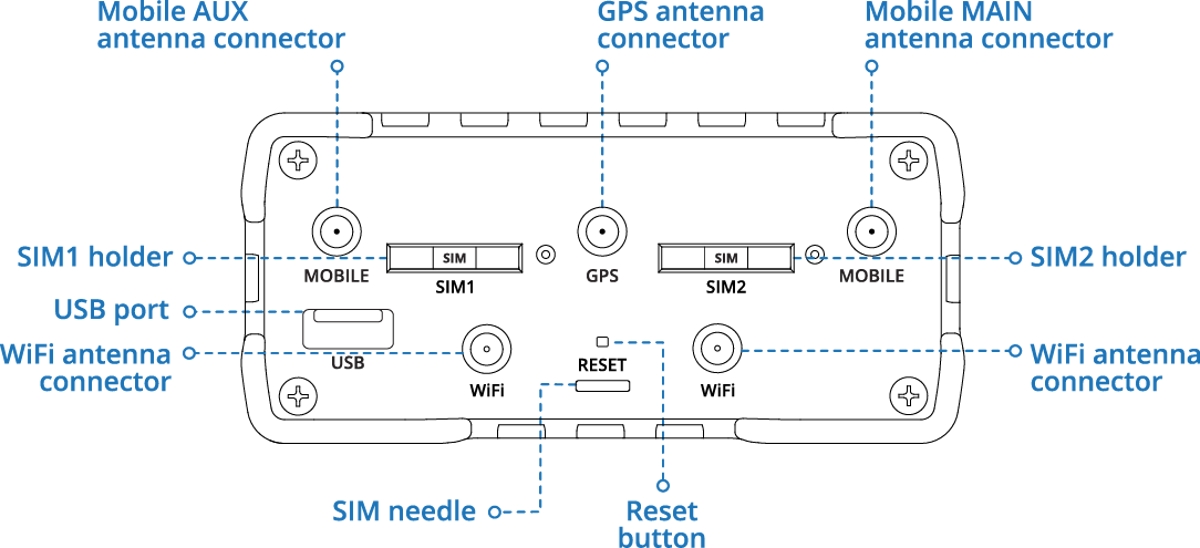

The Teltonika RUT986 is an industrial 4G LTE Wi-Fi 4 router with WAN failover, (4) 10/100Mbps ports (3x LAN, 1x WAN), 2.4GHz 2x2 Wi-Fi 4 delivering throughput of up to 300Mbps, (1) RS232 and (1) RS485 serial interfaces, (1) 10-pin I/O terminal block, (1) USB 2.0 port, (3) SMA female connectors for (2) external LTE antennas and (1) GNSS antenna, (2) RP-SMA female connectors for external Wi-Fi antennas, (2) mini SIM slots and eSIM support.
The router is equipped with a modem supporting 4G LTE Cat. 4, 3G and 2G, with data rates of up to 150Mbps downlink and 50Mbps uplink. Power can be supplied via the 4-pin DC connector (9-30 V) or passive PoE (9-30 V) on the LAN1 port.
Package contents
- Device
- (2) Magnetic mobile antennas
- (2) Magnetic Wi-Fi antennas
- GNSS antenna
- 1.5m patch cable
- Power adapter 9V/1A
- SIM adapter kit
- Terminal blocks
Technical parameters
LAN ports
Power over Ethernet
9 .. 30V DC
Design
Industry
Max. WAN speed
100M
Operating mode
AP Router, Cellular router
Wireless frequency
2.4 GHz, 3G (GSM), LTE, 2G (GSM)
WiFi standards
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]
300
Security
WPA, WPA2, WPA3, OWE
2.4GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
5
RF connectors
(3) SMA female, (2) RP-SMA female
Integrated 4G/LTE radio part
Yes
Power type
4-pin automotive, PoE
4G/LTE bands support
(1) 2100 MHz, (12) 700 MHz, (13) 700 MHz, (14) 700 MHz, (18) 850 MHz, (19) 850 MHz, (2) 1900 MHz, (20) 800 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (3) 1800 MHz, (4) 1700 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(4) 10/100Mbps
LAN ports 100M
4
PoE type
PoE-In (only)
Max. power consumption [W]
7
USB ports 2.0
1
Power via connector/terminal
9 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 65
Weight [g]
294
Width [mm]
110
Height [mm]
50
Depth [mm]
100
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
32
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
Other features
RS485
