Ubiquiti Enterprise Audio/Video XG 24 PoE, AVoIP switch
Your price incl. VAT (20.0%)
4,741.00 EUR
Ordered for stock
No confirmed delivery date
295.39 EUR excl. VAT
151.18 EUR excl. VAT
58.15 EUR excl. VAT
Ubiquiti UACC-OM-QSFP28-LR4 - Optical module, Single-Mode, 100 Gbps, LC UPC DuplexUACC-OM-QSFP28-LR4
252.69 EUR excl. VAT
Product description
The Ubiquiti Enterprise Audio/Video XG 24 PoE is a high-end UniFi PoE L3 switch designed for professional A/V installations, offering (24) 10G PoE+++ ports, a PoE budget of 2150W, (4) QSFP28 uplink slots, (1) SMA input for time synchronization via GPS clocks and redundant hot-swap power supplies and fans.
Key features

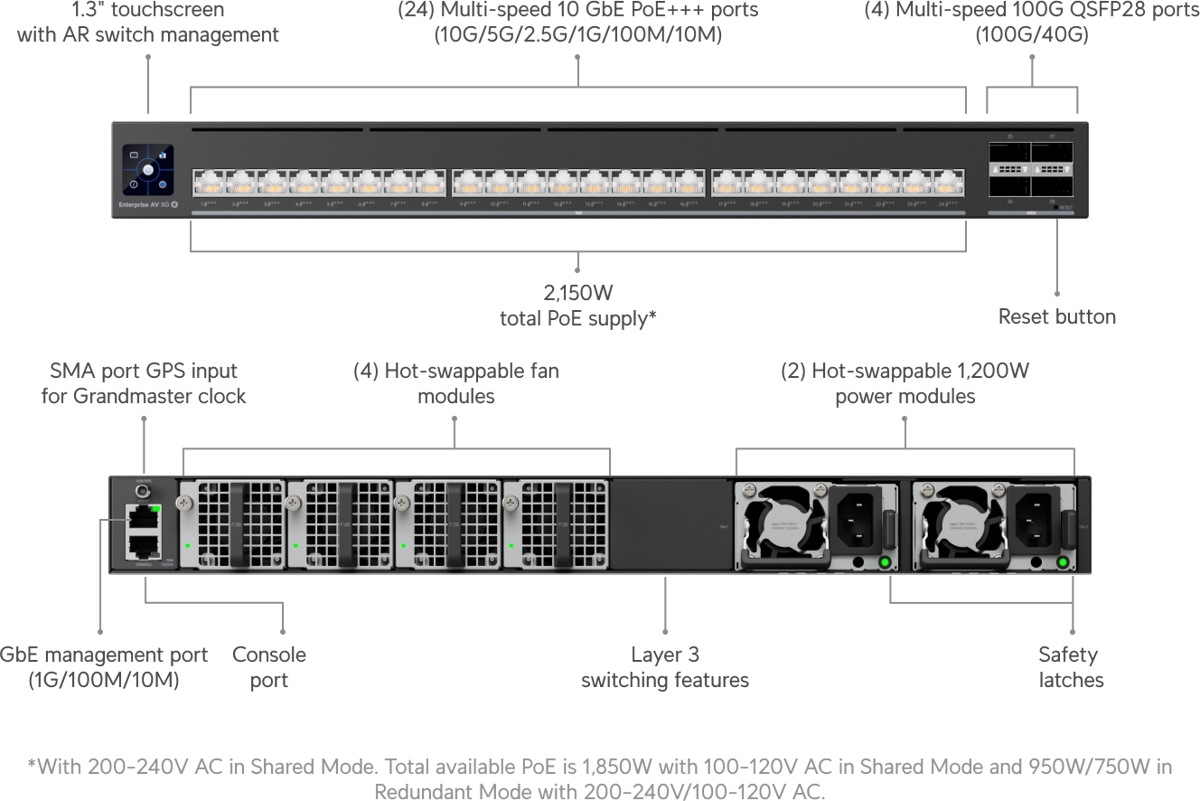

- (24) 10Gbps PoE+++ ports, (4) QSFP28 uplink slots, (1) 1Gbps management port and (1) RJ45 console port
- 802.3af/at/bt PoE+++ with up to 90W/port and a total PoE budget of up to 2150W (1050W with power supply redundancy)
- GPS time synchronization - precise alignment of audio and video streams for smooth playback and minimal latency
- Wide range of supported AV protocols - SMPTE ST 2110, SDVoE, Dante, AES67 and others

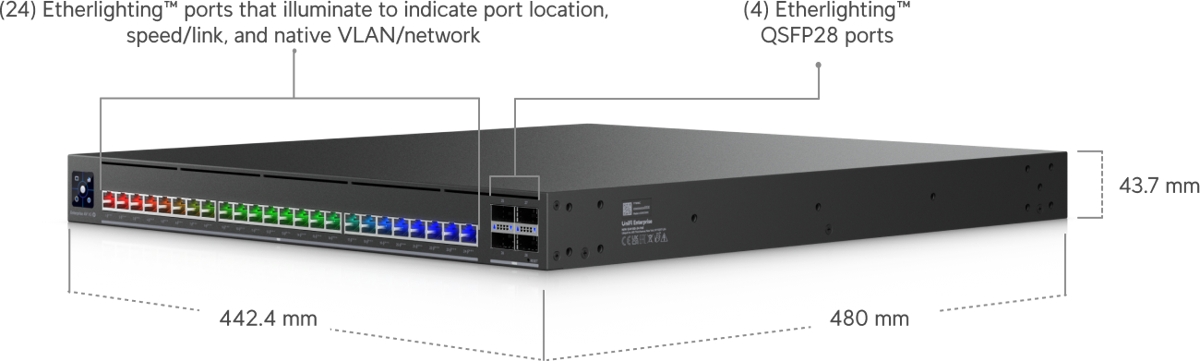

- Etherlighting - visual indication of port status and additional information

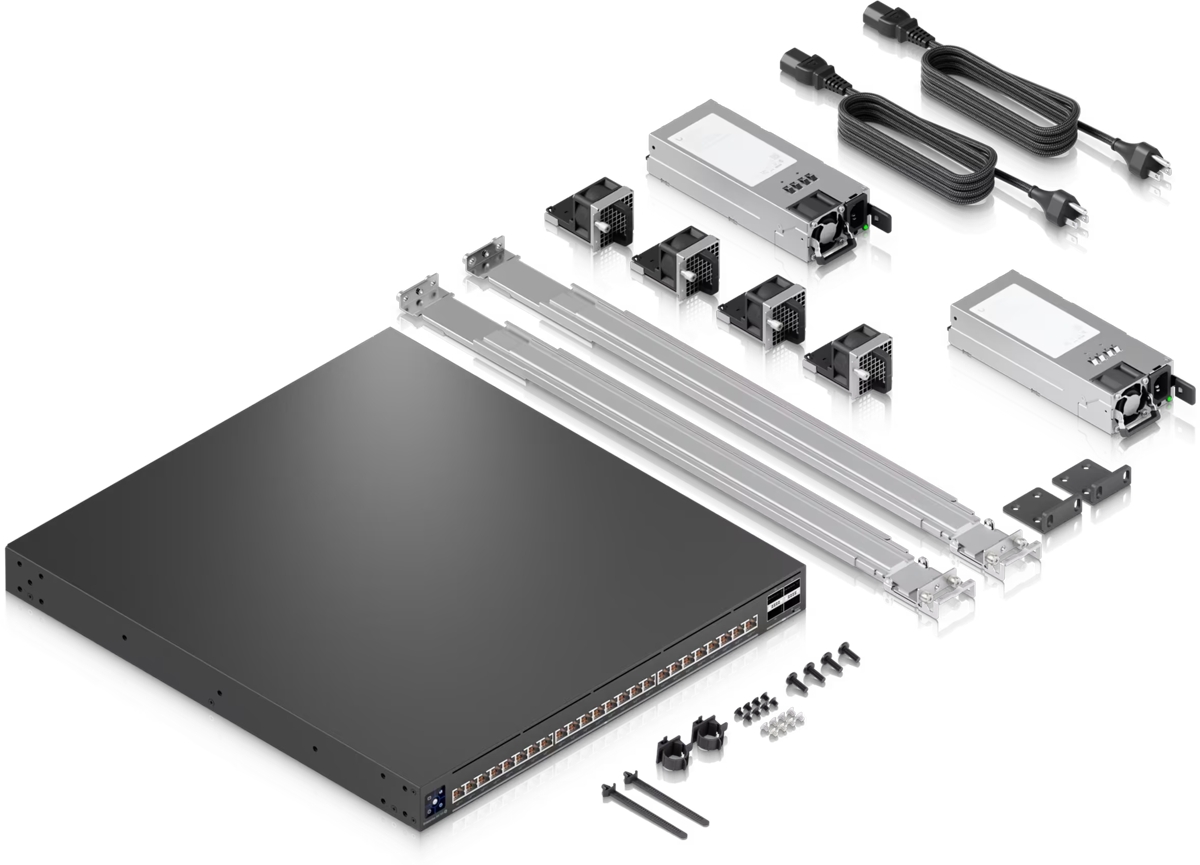

Package contents
- Device
- (2) Power supplies
- (4) Hot-swap fans

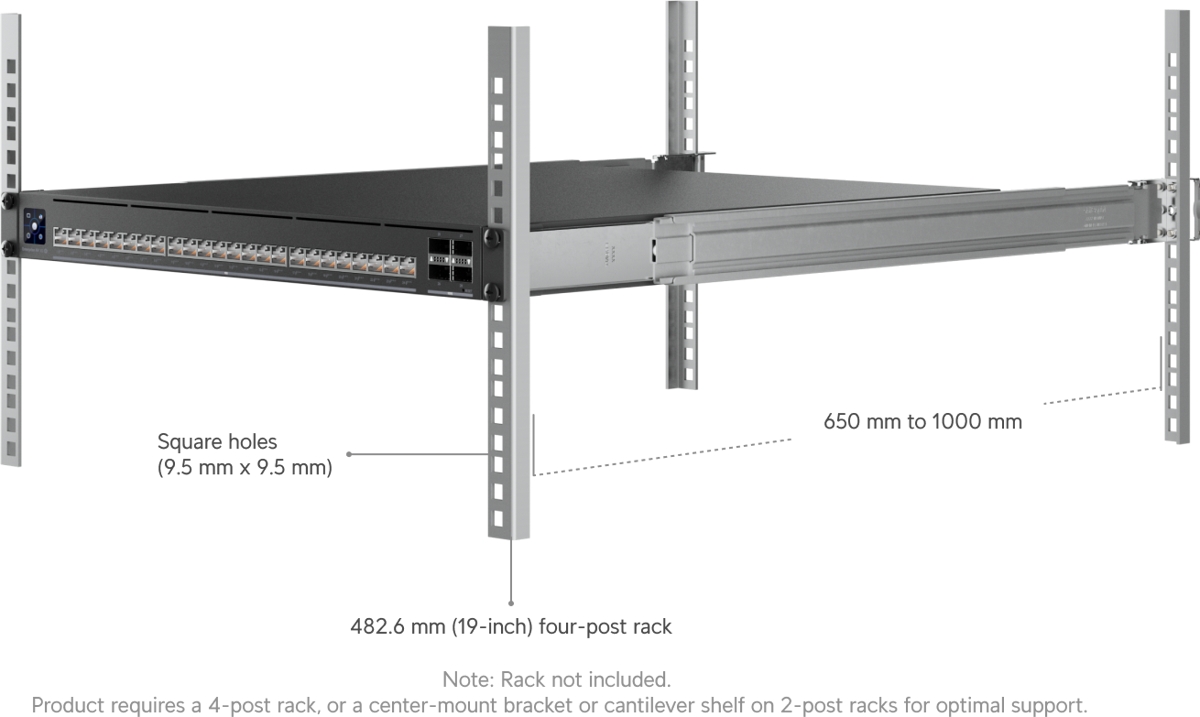

- Rack mounting kit
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
1280
MAC address table
32000
Packet forwarding rate [Mpps]
810
Features
QoS, DHCP snooping, VLAN, L3
Power type
Mains power (230V)
Fans
Yes
LAN speed
(24) 100M/1G/2.5G/5G/10G
LAN ports 1G
1
LAN ports 10G
24
Management LAN
Yes
PoE type
PoE-Out (only)
RJ45 ports 1G
1
RJ45 ports 10G
24
QSFP28 cages
4
Optical interfaces
(4) 100G
PoE-Out standards
802.3af, 802.3at, 802.3bt
Redundant power supply
Yes
PoE Out ports
24
PoE budget [W]
2150
Max. power consumption [W]
2400
Serial port
RJ45
Chassis design
Metal
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
480
Other features
Touchscreen
