Ubiquiti USL-Relay, UniFi Protect relay
Your price incl. VAT (20.0%)
39.43 EUR
Ordered for stock
No confirmed delivery date
Product description

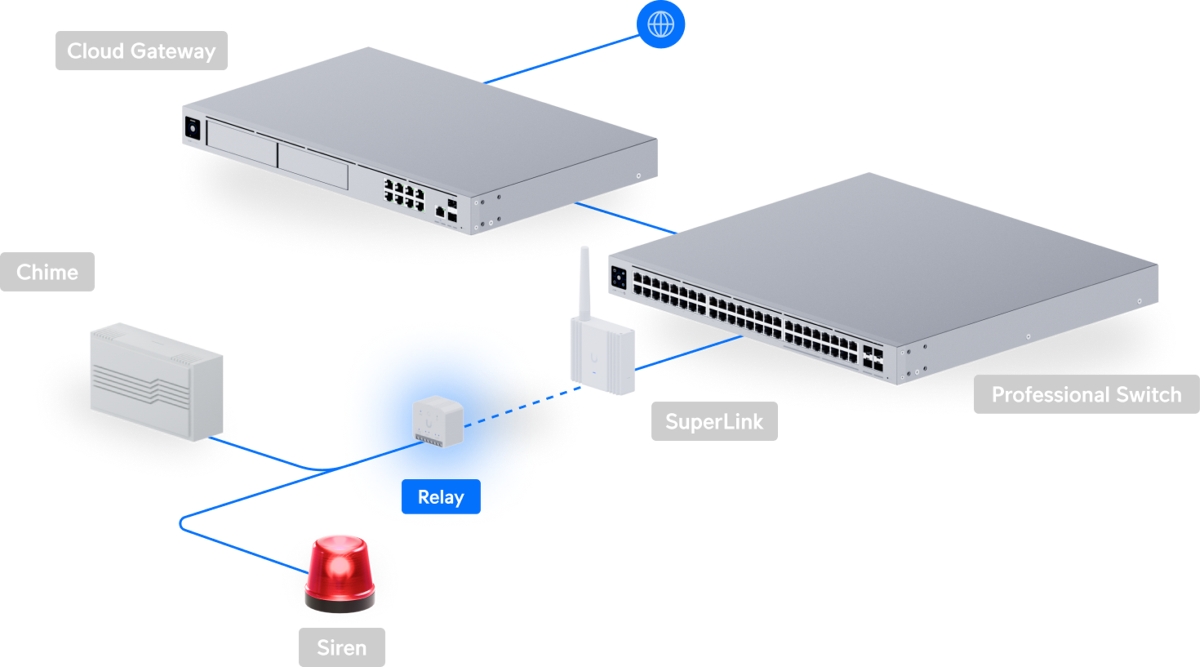

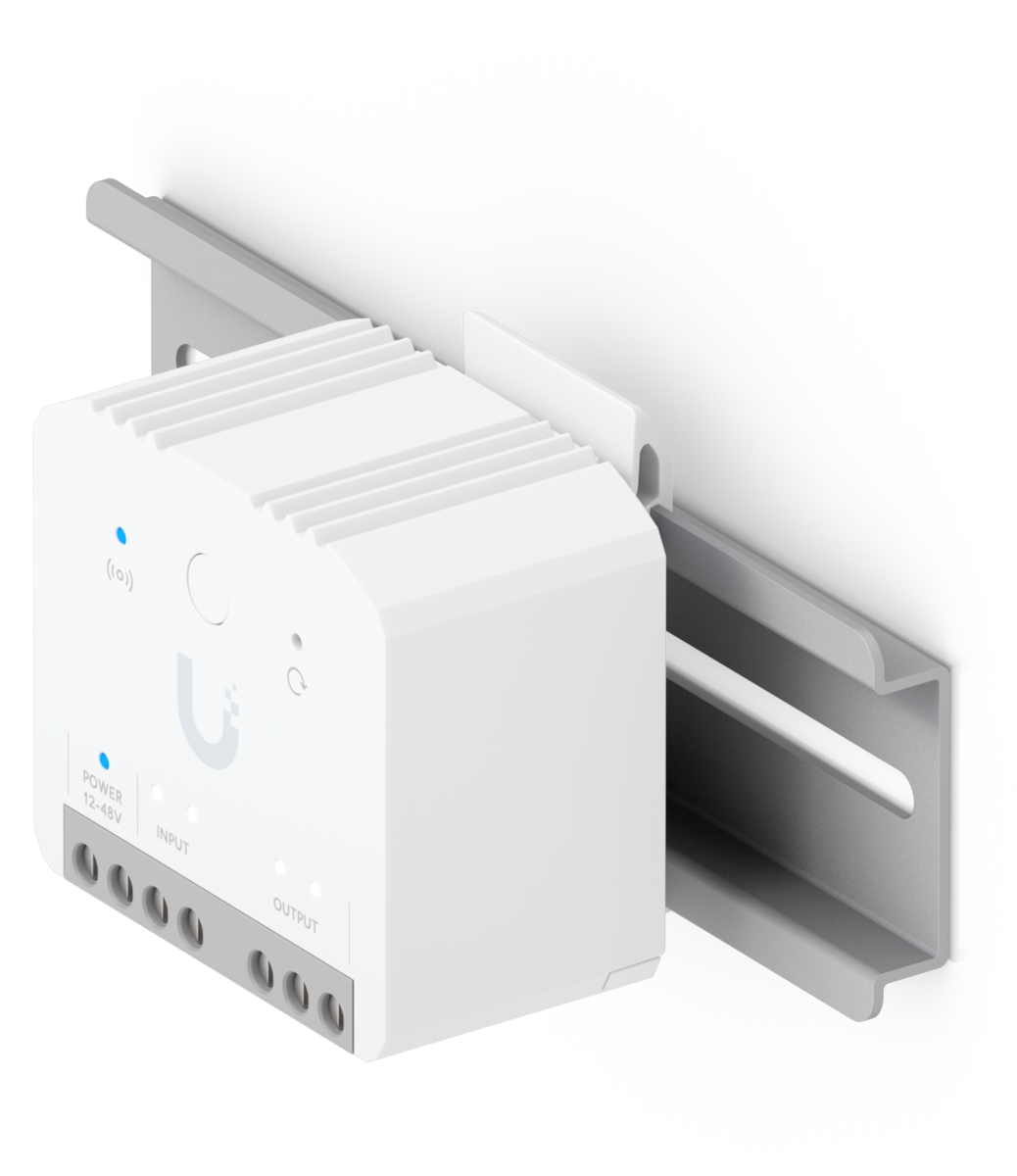

The Ubiquiti USL-Relay is a wireless UniFi Protect relay designed for controlling and integrating third-party devices and sensors. It features (2) inputs and (2) outputs. It communicates with the gateway using the proprietary SuperLink protocol with range of up to 2km (in open space). The relay can be easily attached using adhesive or screws to a wall or mounted on a DIN rail and is powered via a 12-48V DC terminal block.

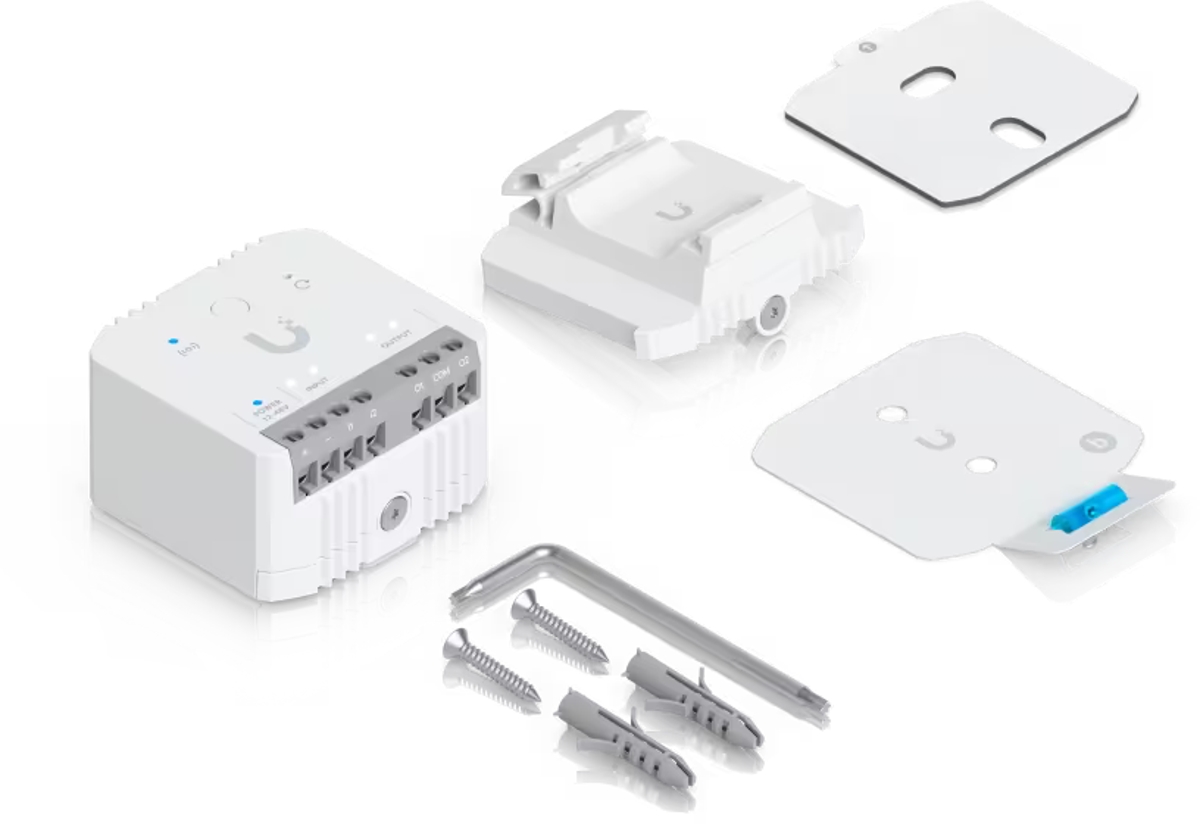

Package contents
- Device
- Wall or DIN rail mounting kit
Technical parameters
LAN ports
Tx power [dBm]
14
Design
On the wall, DIN rail
Management
UniFi Protect
Wireless frequency
SuperLink
Power type
DC terminal

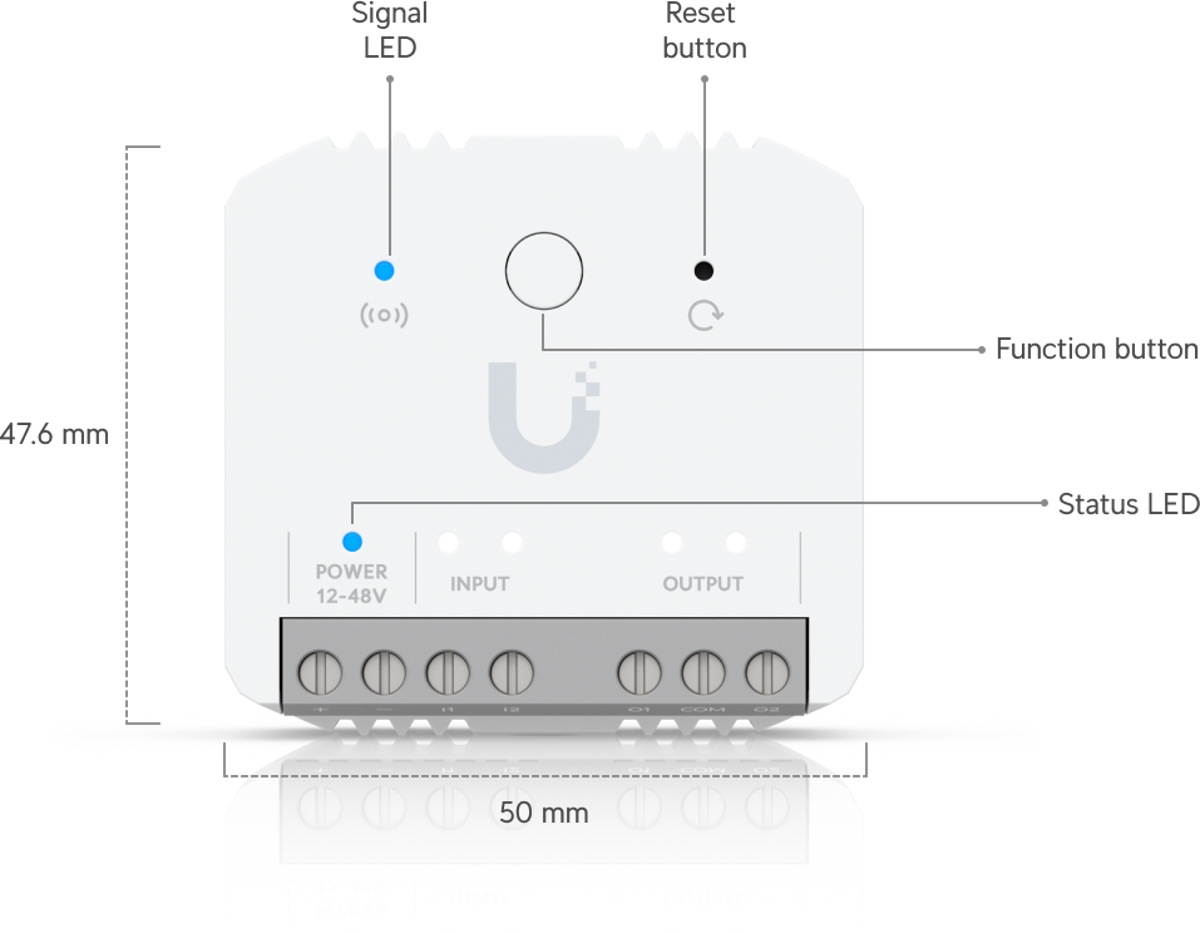

LED indication
Yes

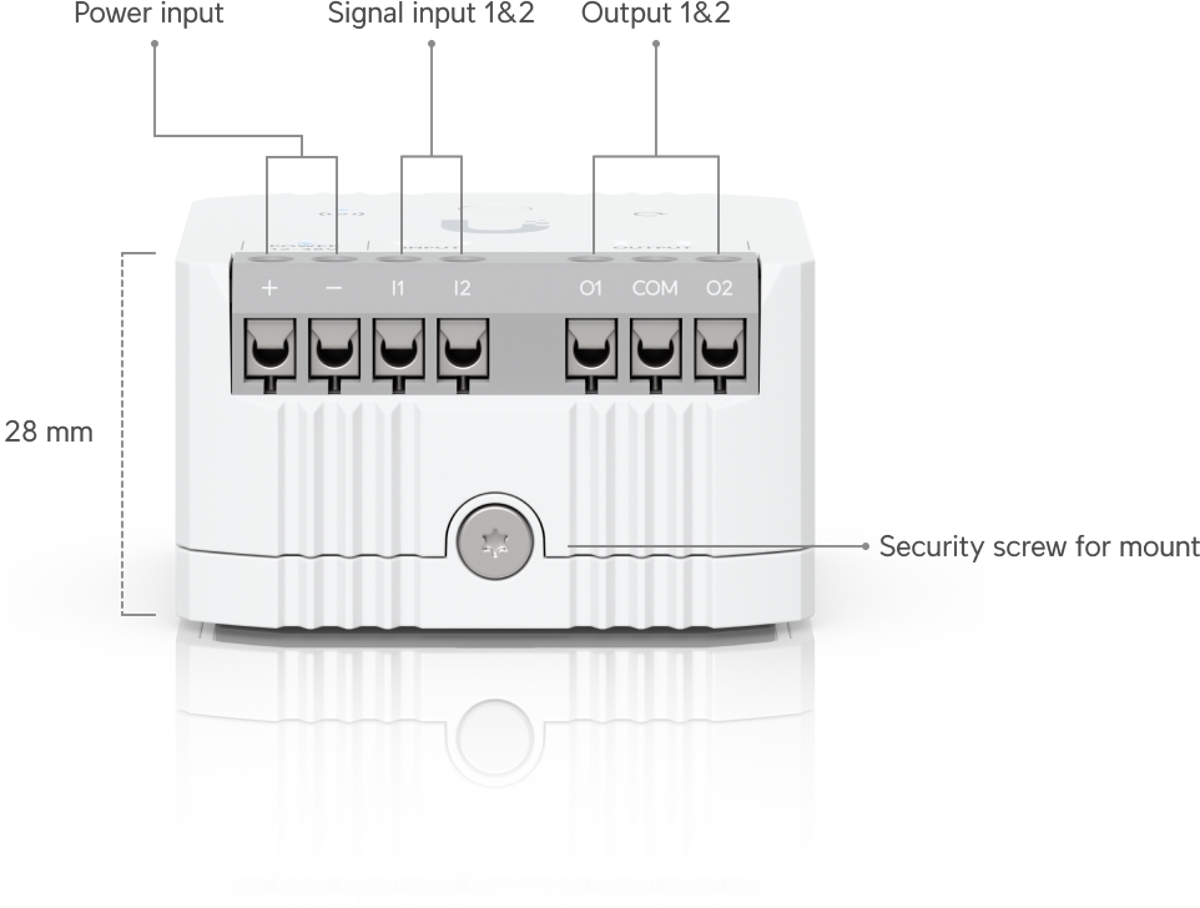

Power via connector/terminal
12 .. 48V DC
Buttons
Reset
Operating temperature [°C]
0 up to 40
Weight [g]
100
Width [mm]
50
Height [mm]
28
Depth [mm]
48
