MEAN WELL DRS-240-12, DIN rail power supply, UPS, 12V, 240W
Your price incl. VAT (20.0%)
190.24 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
You have a choice of 4 variants
1.16 EUR excl. VAT
1.37 EUR excl. VAT
0.43 EUR excl. VAT
0.43 EUR excl. VAT
3.00 EUR excl. VAT
Product description

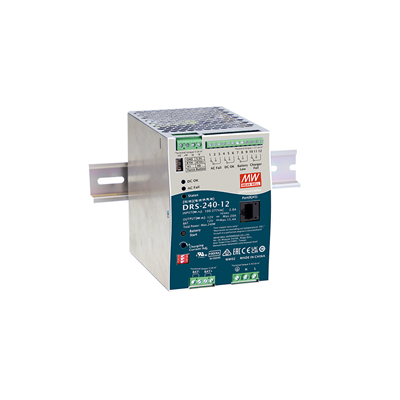

The MEAN WELL DRS-240-12 is a DIN rail power supply with UPS function and a battery charger. It offers a 12V DC output, 240W output power, 20A output current, an RJ45 interface for Modbus, 90% efficiency, 90-305V AC input voltage, alarm and status relay outputs (AC Fail, DC OK, Battery Low, Charger Fail) and protection against short circuit, overload, overvoltage, battery reverse polarity and deep discharge. It is designed for installation on TS35/7.5 and TS35/15 DIN rails, where it occupies 85.5mm in width.
Download
Technical parameters
LAN ports
Charging function
Yes
Construction
DIN rail
Input and output power
Terminal block
Power [W]
240
Output Voltage [V]
12
Output Current [A]
20
Operating temperature [°C]
-30 up to 70
Weight [g]
1190
Width [mm]
86
Height [mm]
125
Depth [mm]
129
Efficiency [%]
90
