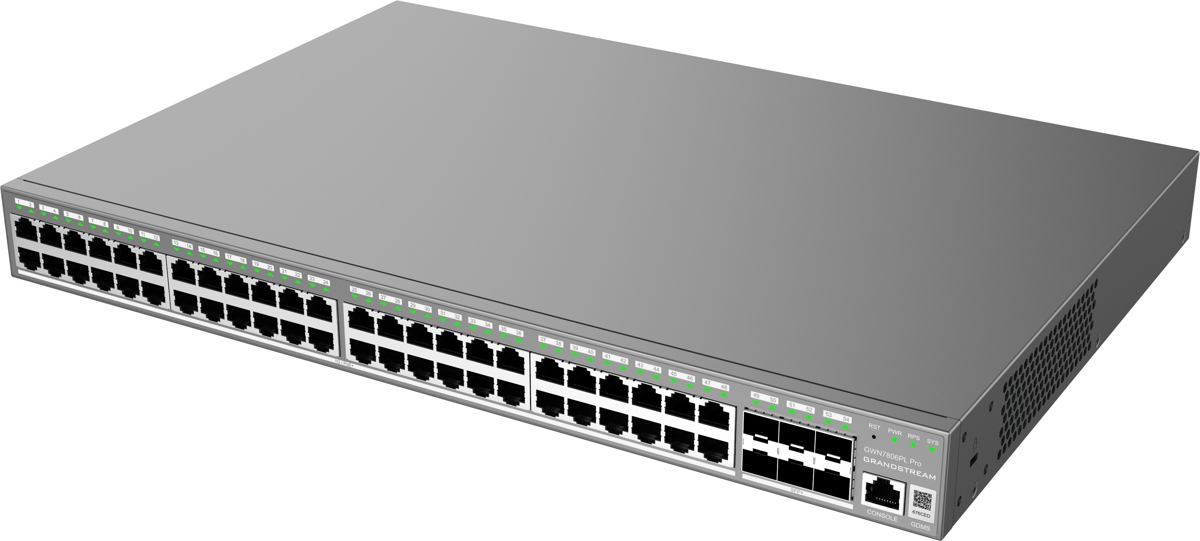

Grandstream GWN7806PL Pro, Gigabit PoE switch
Your price incl. VAT (20.0%)
582.83 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
You have a choice of 7 variants
6.32 EUR excl. VAT
10.52 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.69 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.69 EUR excl. VAT
Product description
The Grandstream GWN7806PL Pro is a managed L2+ switch with a switching capacity of 216Gbps, offering (48) 1G PoE+ ports, a PoE budget of 400W, (6) SFP+ slots and support for management via local web interface, GDMS cloud management and GWN Manager.
Key features

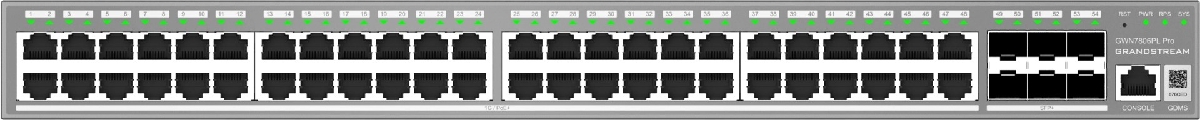

- (48) 1Gbps PoE+ ports, (6) SFP+ slots and (1) RJ45 console port
- 802.3af/at PoE+ with up to 30W/port and a total budget of up to 400W
- Convenient and intelligent management via the web user interface and the cloud

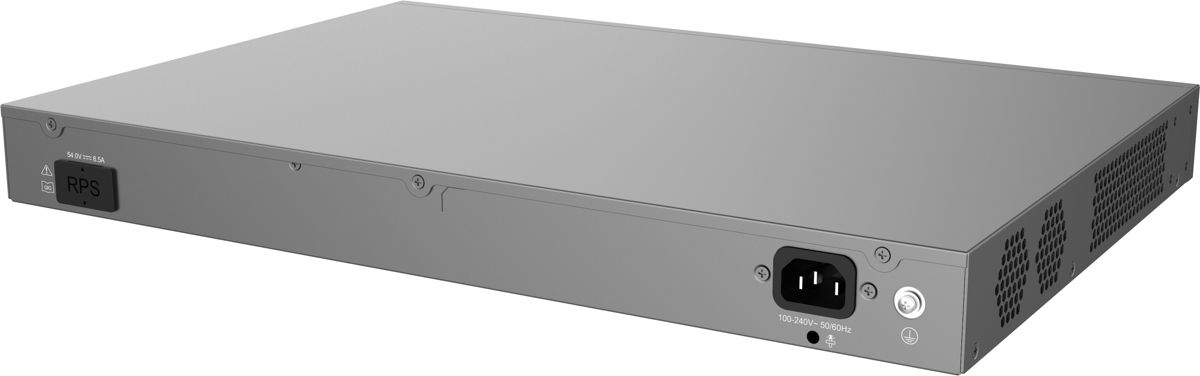

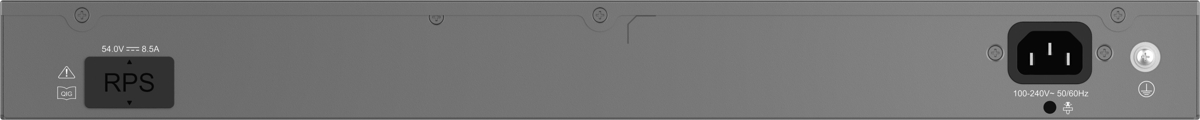

- Supports redundant power via an external RPS
- VLAN, QoS, ARP Inspection, IP Source Guard, DoS protection, port security and DHCP snooping
Package contents
- Device
- Rack mounting kit
- Power cable
Download
Technical parameters
LAN ports
Jumbo frame [Bytes]
12000
Design
Rackmount
Packet forwarding rate [Mpps]
160,7
Switchning capacity [Gbps]
216
MAC address table
32000
Web management
Yes
Management
Cloud (GDMS), Web management, SSH, Telnet
Features
L2+, VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN speed
(48) 10/100/1000Mbps
Management LAN
Yes
PoE type
PoE-Out (only)
RJ45 ports 1G
48
SFP+ cages
6
Optical interfaces
(6) 10Gbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
48
Redundant power supply
Yes
PoE budget [W]
400
Max. power consumption [W]
510
Serial port
RJ45
Chassis design
Metal
Buttons
Reset
Operating temperature [°C]
0 up to 45
Depth [mm]
300
Width [mm]
440
Height [mm]
44
Default IP address
192.168.0.254, Dynamic from DHCP
Default login and password
admin / (preset password, see label/engraving)
