TP-Link VIGI C540S(4mm), IP PT camera, 4MP, LED 30m, ColorPro
Your price incl. VAT (20.0%)
230.56 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
25.95 EUR excl. VAT
43.81 EUR excl. VAT
Product description

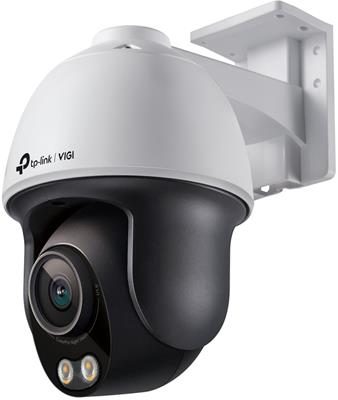

The TP-Link IP PT camera VIGI C540S(4mm) features an F1.0 4MP sensor (2688 x 1520 px) at 30fps, a fixed 4mm (104°) lens, adaptive white light illumination for night vision up to 30m + flasher (strobe light and audible alarm), IP66 weather protection, 120dB True WDR technology and two-way audio. The camera connects to the network via 10/100Mbps LAN with PoE+ support and a maximum power consumption of 16.5W.
Key features
- 4MP 30fps video (2688 x 1520 px)
- 360° coverage - with auto-patrol and smart motion tracking, no movement goes unnoticed
- Advanced AI detection - filters out false alerts and reliably detects people and vehicles
- Adaptive LED illumination - LED illumination with a 30m range + flasher (strobe light and audible alarm)
- ColorPro color night vision - vivid images even in low-light conditions
- Two-way communication - built-in microphone and speaker enable clear two-way audio
- Supports local recording to a microSD card up to 512GB or NAS
- IP66 weather-resistant housing
- Power via 802.3at PoE+ or 12VDC connector
Download
Technical parameters
LAN ports
Power over Ethernet
802.3at
Resolution
4MP
Protection class
IP66
Bit rate
256Kbps ~ 6Mbps
Camera class
VIGI
Technology and conveniences
Autotracking, ColorPro, Vehicle detection, Face capture
WDR
True WDR (120 dB)
Lens type
Fixed
Lens [mm]
4 (fixed)
Illumination
White light with strobe light
Illumination range [m]
30
Purpose
Outdoor
Slot for Memory Card
microSD - up to 512GB
Max. resolution [pixels]
2688 x 1520
Audio
Microphone, Speaker
Viewing Angle [°]
104
Alarm
Yes
Power type
PoE, DC connector
Number of streams
2
LAN speed
(1) 10/100Mbps
Max. power consumption [W]
16,5
Power via connector/terminal
12V DC
Video compression
H.264, H.265
Operating temperature [°C]
-30 up to 60
Weight [g]
590
Width [mm]
120
Height [mm]
203
Depth [mm]
172
Color
White
Minimum illumination [Lux]
0,0005
Image sensor ["]
1/1.79
Default IP address
192.168.0.60
Default login and password
admin / -
Pan and Tilt
Pan: 0° ~ 348°; Tilt: 0° ~ 105°
Speed of Pan and Tilt
8° ~ 44°/s
