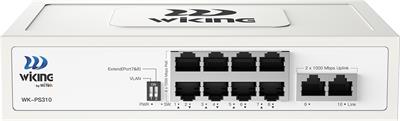

Wiking WK-PS310 V2, Gigabit PoE switch
Your price incl. VAT (20.0%)
43.94 EUR
Ordered for stock
Planned Delivery Date by Courier to you 09-12-2026
Product description
The Wiking WK-PS310 V2 is an unmanaged PoE switch with a switching capacity of 20Gbps, (8) 1Gbps PoE+ ports and (2) 1Gbps uplink ports. The downlink ports support 802.3af/at PoE+ with a 76W budget. The switch is ideal for CCTV installations thanks to PoE, automatic IP camera reboot in case of connection failure and the option to extend the transmission distance of PoE ports up to 250m.
Key features
- (8) 1Gbps PoE+ ports and (2) 1Gbps uplink ports
- Passive cooling - silent operation, suitable for office environments
- Downlink ports support 802.3af/at PoE+ delivering up to 30W/port with a total budget of 76W
-
The DIP switch controls the following modes:
- VLAN - enables port isolation, where each PoE port can transmit data only to the uplink ports, and the PD Alive function, which automatically reboots dropped or unresponsive PoE devices
- Extend - extends the transmission distance of ports 7-8 up to 250m at 10Mbps and enables the PD Alive function, which automatically reboots dropped or unresponsive PoE devices
Package contents
- Device
- Power cable
Download
Technical parameters
LAN ports
Design
Desktop
Switchning capacity [Gbps]
20
MAC address table
2000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
14.9
Power type
Mains power (230V)
Fans
No
LAN speed
(10) 10/100/1000Mbps
LAN ports 1G
10
PoE type
PoE-Out (only)
RJ45 ports 1G
10
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
76
Long range PoE - up to 250m
Yes
Max. power consumption [W]
90
Chassis design
Metal
Buttons
Switch mode
Operating temperature [°C]
0 up to 40
Width [mm]
200
Height [mm]
44
Depth [mm]
118
