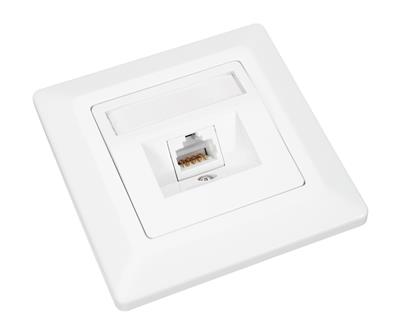

Solarix SX9-1-5E-UTP-WH, Flush-mount data outlet, 1x RJ45, CAT5E UTP
New
Your price incl. VAT (20.0%)
4.56 EUR
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 11-11-2026
You have a choice of 4 variants
Product description
The Solarix SX9-1-5E-UTP-WH is a white unshielded CAT5E data outlet designed for flush-mount installation. It is equipped with (1) RJ45 port angled at 45° to reduce strain on the connected cable. The outlet can also be surface-mounted using the Solarix SX9-0-WH mounting box.
AWG 26 to 22 solid conductors are terminated in a Krone-type IDC terminal block. The terminal contacts are color-coded for wiring according to the T568A and T568B standards. The outlet supports 2.5/5GBASE-T and lower-speed protocols.
Download
Technical parameters
LAN ports
Ports quantity
1
Angled
Yes
Ports angle [°]
45
Category
CAT5e
Type of socket
Terminal block
Installation
Concealed
Ethernet support
5000 Base-T
Operating temperature [°C]
-10 up to 60
Width [mm]
80
Height [mm]
80
Depth [mm]
33
Color
White
