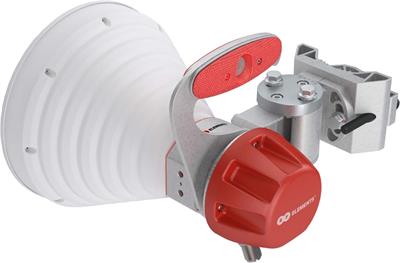

RF elements HG4-CC-S30, Symmetrical Horn antenna, 5GHz, 30°

RF elements HG4-CC-S30, Symmetrical Horn antenna, 5GHz, 30°
Your price incl. VAT (20.0%)
163.21 EUR
Comandat pentru disponibilitate
Delivery Nicio dată de livrare confirmată
RF elements
Manufacturer
RF elements
Product number
HG4-CC-S30
Product Code
RL030.535
Warranty
24 months

Having a question?
RF N male coupler for N female 90° angle
RF N male coupler for N female 90° angle03-NM-NF-90
3.50 EUR excl. VAT
Adaugă in coş
Self vulcanizing tape SCAPA 25 mm x 10m - Shrink
Self vulcanizing tape SCAPA 25 mm x 10m - ShrinkS2501
5.30 EUR excl. VAT
Adaugă in coş
Pigtail Flexi 0,5m - N male / RSMA male
Pigtail Flexi 0,5m - N male / RSMA maleFL-RM-NM-005
6.46 EUR excl. VAT
Adaugă in coş
RF N male coupler for RSMA female
RF N male coupler for RSMA female03-NM-RF
2.78 EUR excl. VAT
Adaugă in coş

Download

https://download.discomp.cz/RFelements/Datasheets/Datasheet-HG4-CC-S30.pdf
Download Datasheet

Technical parameters

LAN ports
Polarization
VH
VSWR
< 1,6
F/B ratio [dB]
33
Designed for mast diameter [mm]
30 up to 80
Wind load [km/h]
160
Protection class
IP55
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
30
Antenna type
Sector
RF connectors
(2) N female
Purpose
Outdoor
Antenna gain [dBi]
18
Material
UV stabilized ABS plastic, Aluminum, Stainless steel
Operating temperature [°C]
-30 up to 55
Weight [kg]
2,9
Width [mm]
214
Height [mm]
238
Depth [mm]
290
