RF elements SH90WB-GO, Sector horn antenna, 5+6GHz, 90°

RF elements SH90WB-GO, Sector horn antenna, 5+6GHz, 90°
Your price incl. VAT (20.0%)
144.28 EUR
Comandat pentru disponibilitate
Delivery Data de livrare planificată prin curier către dvs 12-08-2026
RF elements
Manufacturer
RF elements
Product number
SH90WB-GO
Product Code
RL030.880
Warranty
24 months

Having a question?
You have a choice of 3 variants
RF elements SH30WB-GO, Sector horn antenna, 5+6GHz, 30°
SH30WB-GO
132.89 EUR excl. VAT
RF elements SH60WB-GO, Sector horn antenna, 5+6GHz, 60°
SH60WB-GO
120.23 EUR excl. VAT
RF elements SH90WB-GO, Sector horn antenna, 5+6GHz, 90°
SH90WB-GO
120.23 EUR excl. VAT
Antenna holder on mast L , lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mmSL1-100-035-020-042
8.79 EUR excl. VAT
Adaugă in coş

Download

https://download.discomp.cz/RFelements/Datasheets/sh90wb-go-90-degree-5-6ghz-symmetrical-horn-antenna-datasheet.pdf
Download Datasheet

Technical parameters

LAN ports
Polarization
VH
VSWR
< 1,6
F/B ratio [dB]
30
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP55
Wireless frequency
5 + 6 GHz (dual band)
Elevation beam width (-6dB) [°]
85
Azimuth beam width (-6dB) [°]
86
Antenna type
Sector
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
10, 11
Material
Aluminum, ABS plastic, Stainless steel
Operating temperature [°C]
-35 up to 60
Weight [kg]
1,3

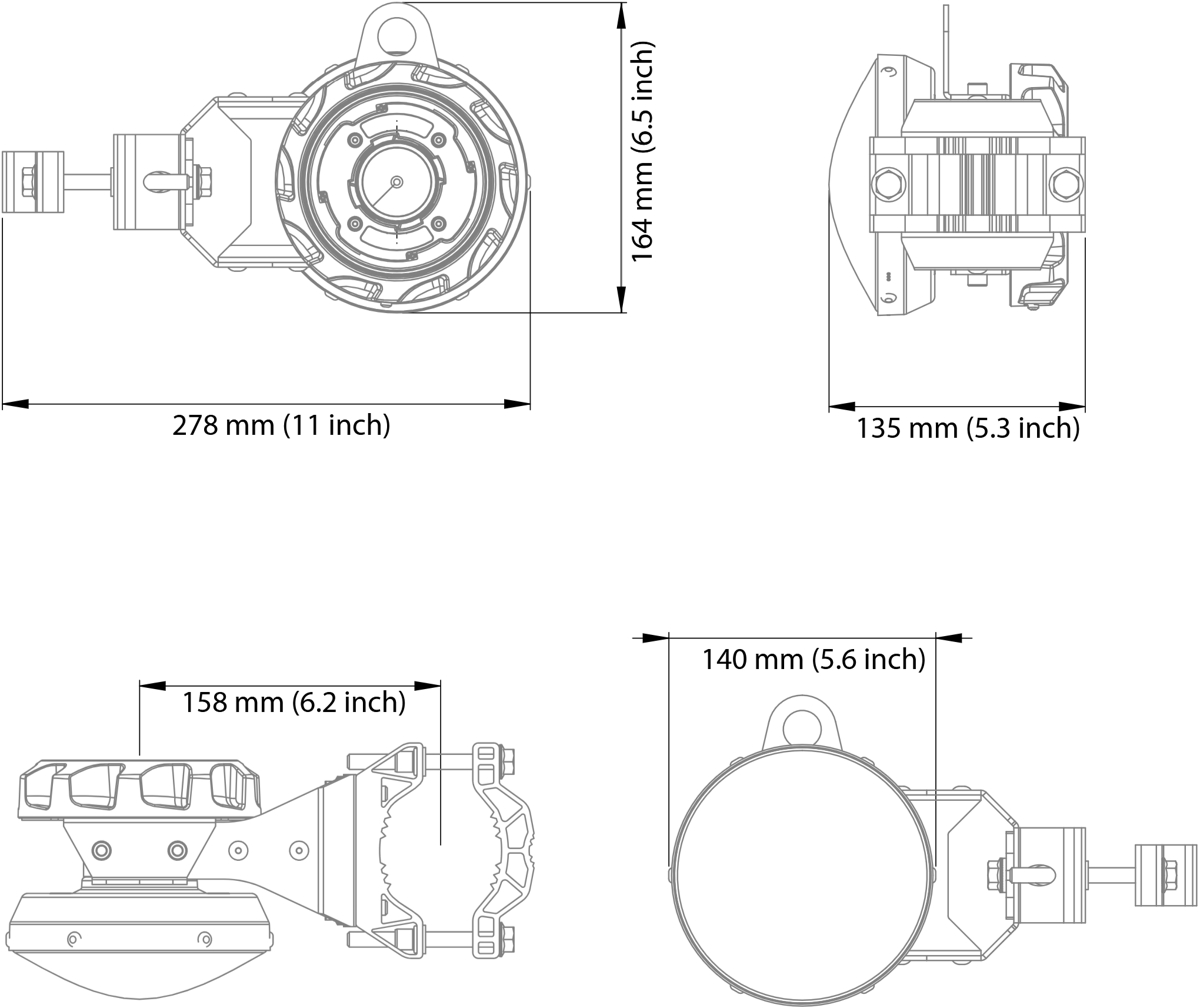

Width [mm]
140
Height [mm]
164
Depth [mm]
135
