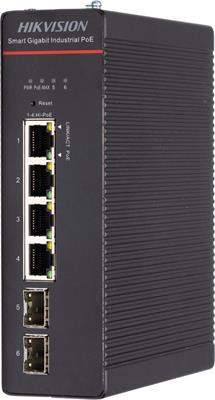

Hikvision DS-3T1506HP-SI-4P2F, Gigabit PoE switch
Your price incl. VAT (20.0%)
172.07 EUR
❌ Articolul nu este disponibil. Nu există opțiune de a comanda.
Nicio dată de livrare confirmată
You have a choice of 2 variants
4.69 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
4.69 EUR excl. VAT
4.83 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
6.39 EUR excl. VAT
Download
Technical parameters
LAN ports
Design
DIN rail
Switchning capacity [Gbps]
20
MAC address table
8000
Packet forwarding rate [Mpps]
14,9
Web management
Yes
Management
Web management
Features
VLAN, QoS, L2, DHCP snooping
Power type
DC terminal
Fans
No
LAN speed
(4) 10/100/1000Mbps
LAN ports 1G
4
PoE type
PoE-Out (only)
RJ45 ports 1G
4
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
4
PoE budget [W]
300
Long range PoE - up to 250m
Yes
Max. power consumption [W]
303
Chassis design
Metal
Power via connector/terminal
48 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Width [mm]
46
Height [mm]
155
Depth [mm]
130
Default IP address
10.180.190.200, Dynamic from DHCP
