Teltonika TRB500 Industrial 5G Gateway - Bazar

Teltonika TRB500 Industrial 5G Gateway - Bazar
Your price incl. VAT (%)
0.00
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 22-10-2025
Teltonika
Manufacturer
Product number
B-TRB500000000
Product Code
RL030.112
Warranty
6 months

Product description

Refurbished product

Used goods repaired and tested by the manufacturer. The packaging is complete, the product may have minor signs of wear. Refurbished goods are guaranteed for 6 months.

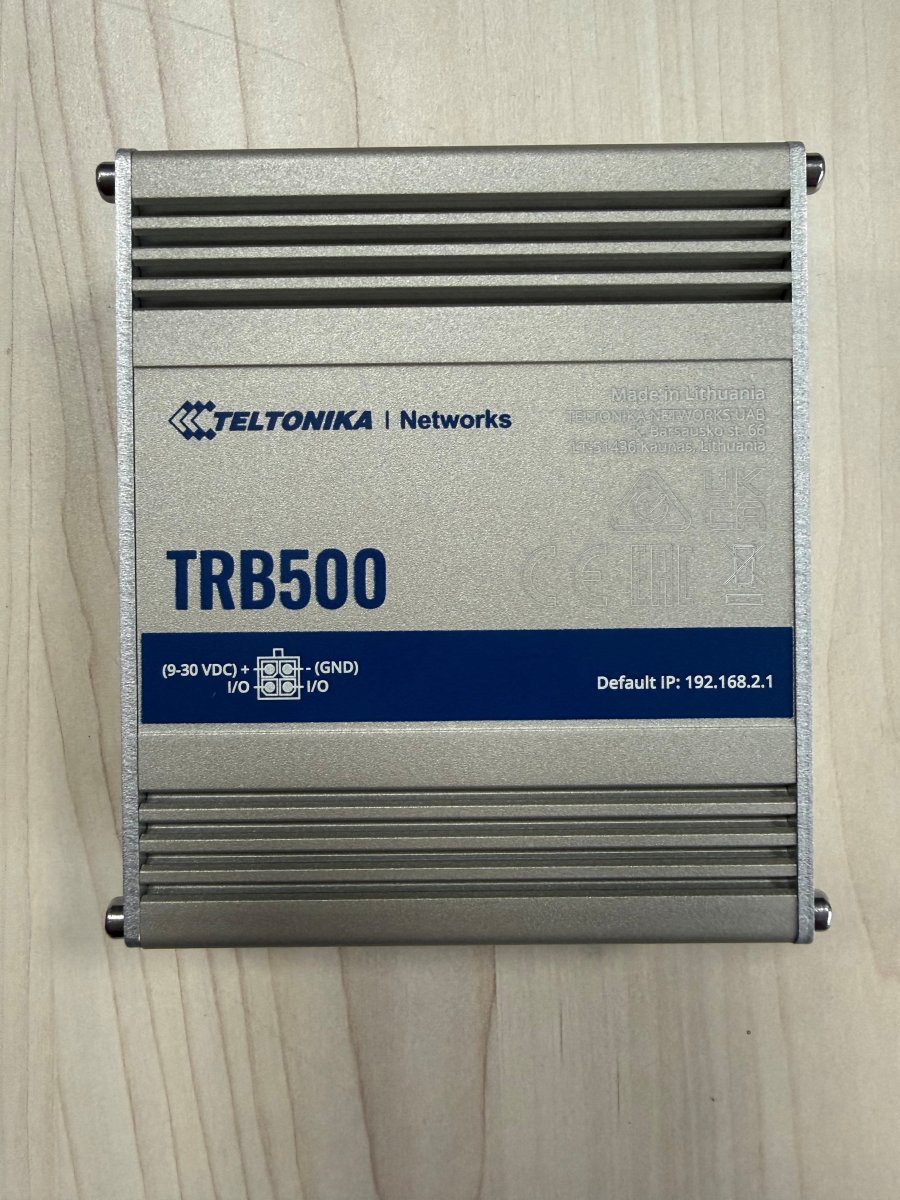

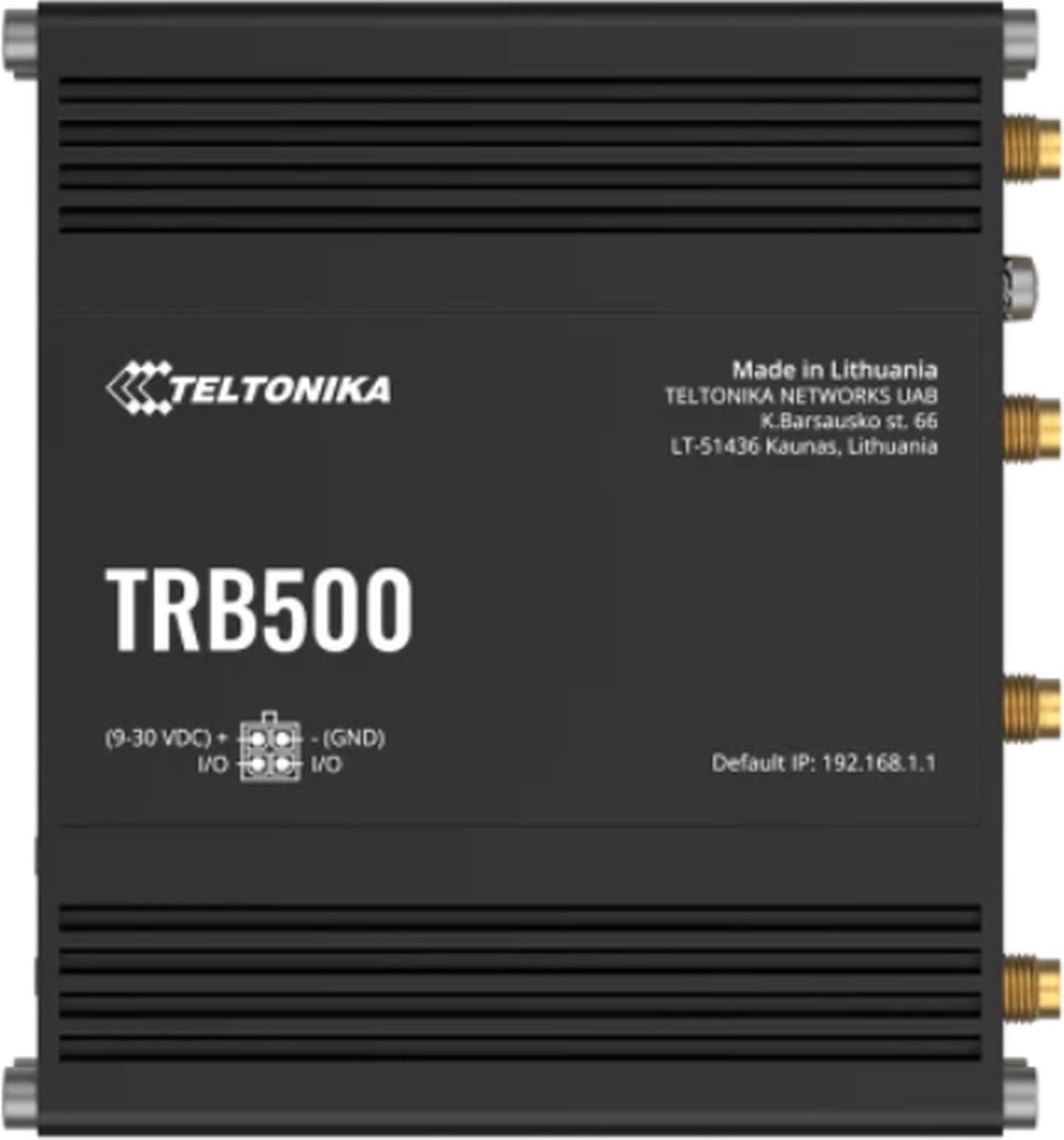

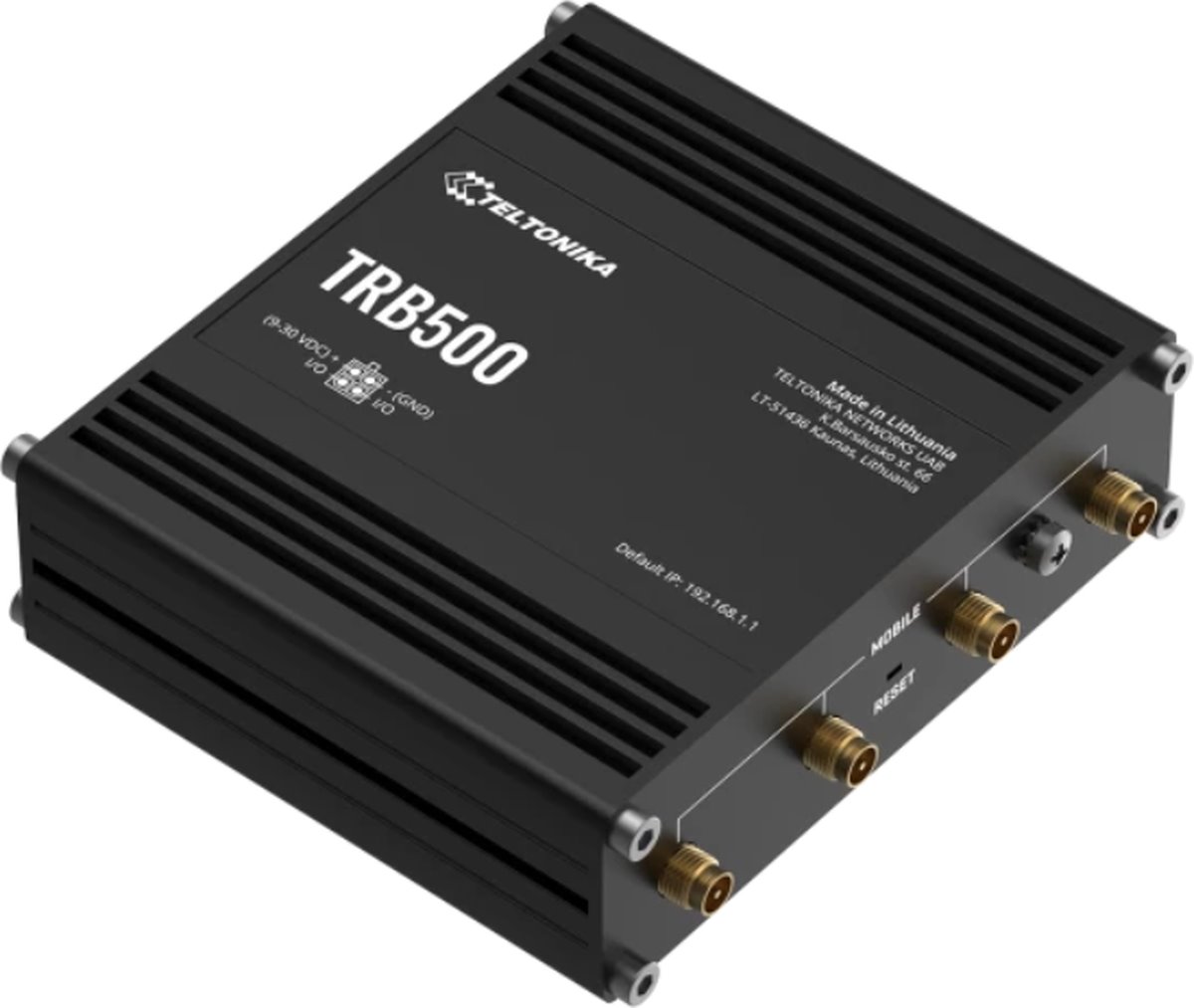

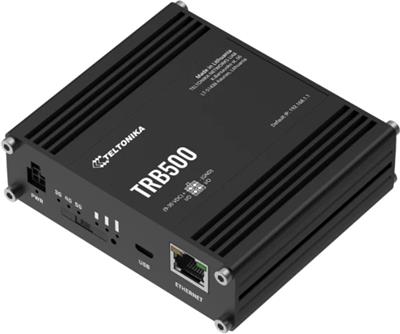

The Teltonika TRB500 5G gateway is among the compact and energy-efficient devices with a Gigabit Ethernet interface and two configurable I/Os. The device delivers ultra-low latency 5G network speeds for critical infrastructure and high data throughput. This is ensured by 4 additional external antennas (included in the package), which enable use in a 4×4 MIMO configuration.

Main advantages

  • Compact size
  • A powerful 5G system
  • Can be equipped with additional external antennas

With the reliable RutOS system

TRB500 is shipped with the RutOS operating system, which provides advanced security features and compatibility with a remote management system (Teltonika RMS) for optimized remote management and monitoring capabilities of large groups of devices.

Key Features

  • Advanced 5G gateway
  • Supports 5G networks

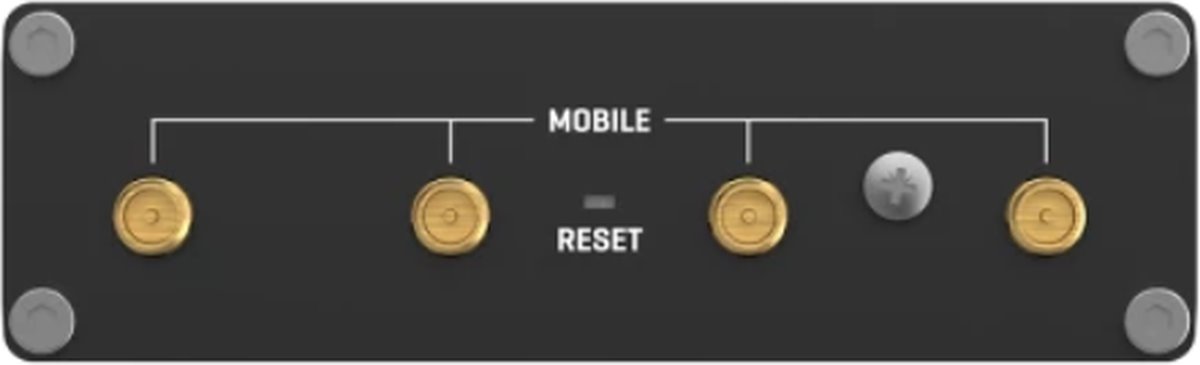

  • Offers 4x SMA port for external antennas
  • RutOS operating system

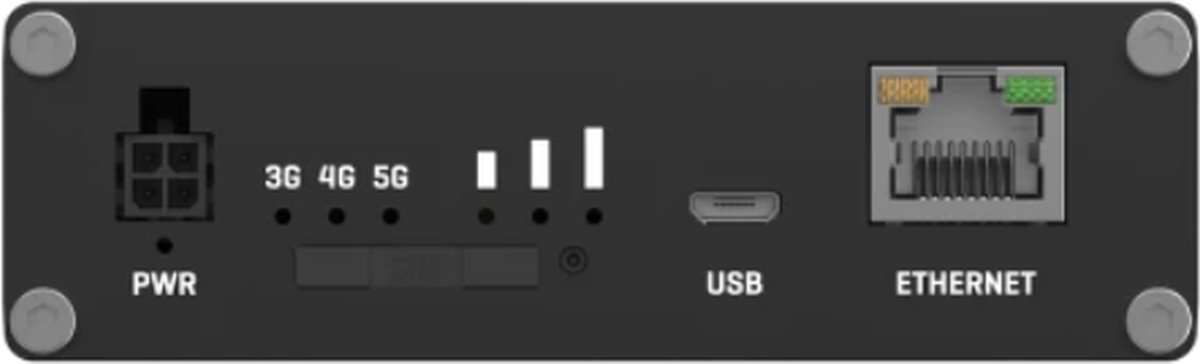

  • Interface: 1× 10/100/1000 Mbps LAN, 1× SIM slot (Mini SIM – 2FF), 2× adjustable I/O

Download

https://download.discomp.cz/Teltonika/Datasheets/Trb500-datasheet-2024-v10.pdf
Download Datasheet
https://wiki.teltonika-networks.com/view/QSG_TRB500
Download Link to Quick Start Guide
https://wiki.teltonika-networks.com/view/TRB500_Manual
Download User Manual

Technical parameters

LAN ports
Design
Desktop, DIN rail
Protection class
IP30
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE
Wireless frequency
3G (GSM), 4G (GSM), 5G (GSM)
RF connectors
(4) SMA female
Power type
DC connector
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz, (77) 3700 MHz, (78) 3500 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
6
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
241
Width [mm]
100
Height [mm]
30
Depth [mm]
93
SIM slots quantity
1
SIM slot
Yes
Internal storage [MB]
512
RAM [MB]
256
