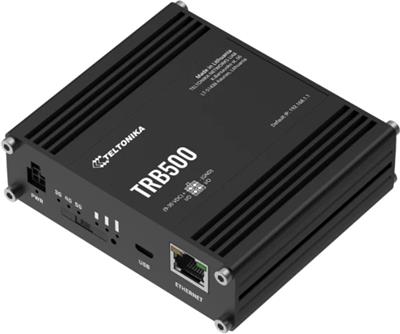

Teltonika TRB500 Industrial 5G Gateway - Bazar
Your price incl. VAT (%)
0.00
✅ În stoc < 10 Бр.
Data de livrare planificată prin curier către dvs 22-10-2025
You have a choice of 3 variants
Technical parameters
LAN ports
Design
Desktop, DIN rail
Protection class
IP30
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE
Wireless frequency
3G (GSM), 4G (GSM), 5G (GSM)
RF connectors
(4) SMA female
Power type
DC connector
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz, (77) 3700 MHz, (78) 3500 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
6
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
241
Width [mm]
100
Height [mm]
30
Depth [mm]
93
SIM slots quantity
1
SIM slot
Yes
Internal storage [MB]
512
RAM [MB]
256
